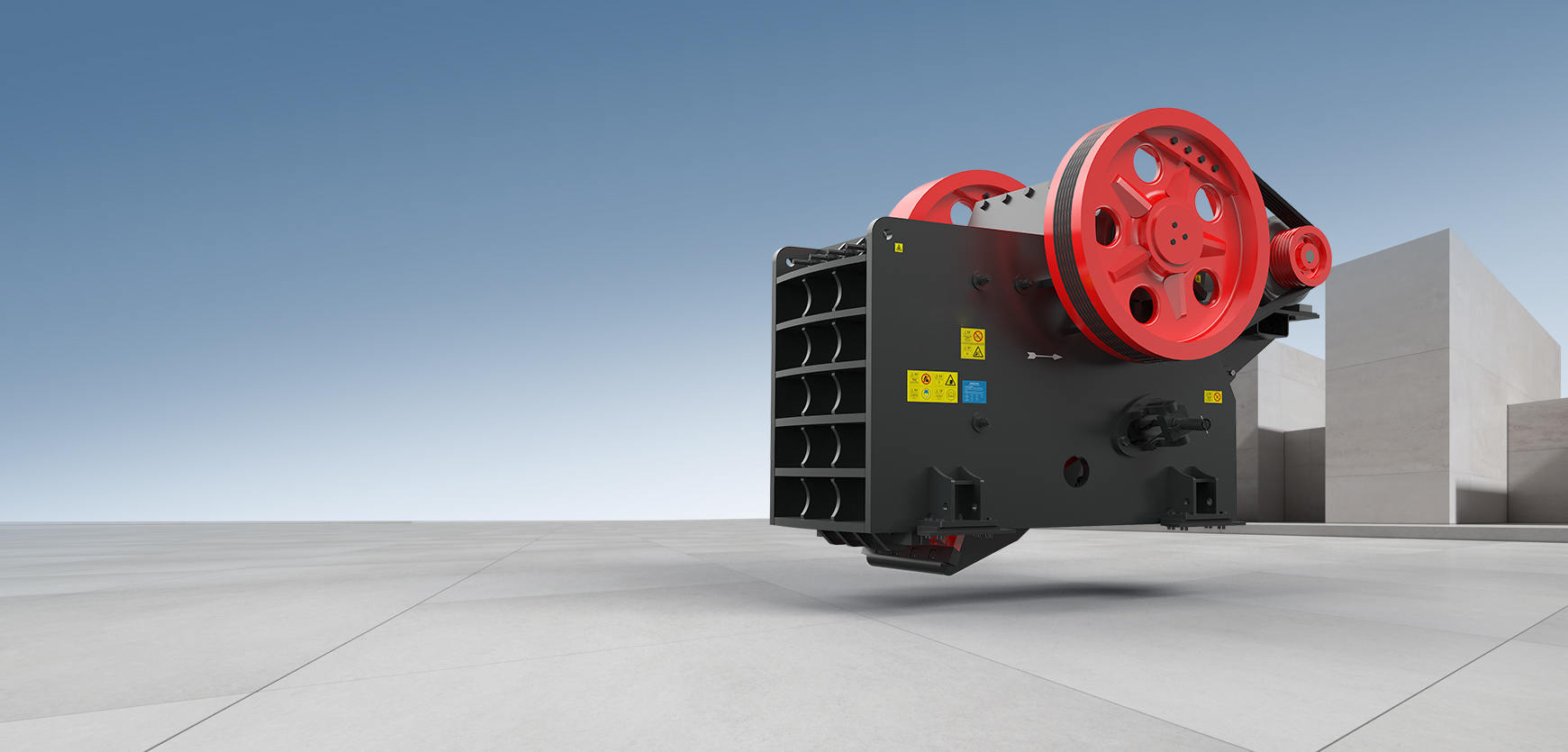

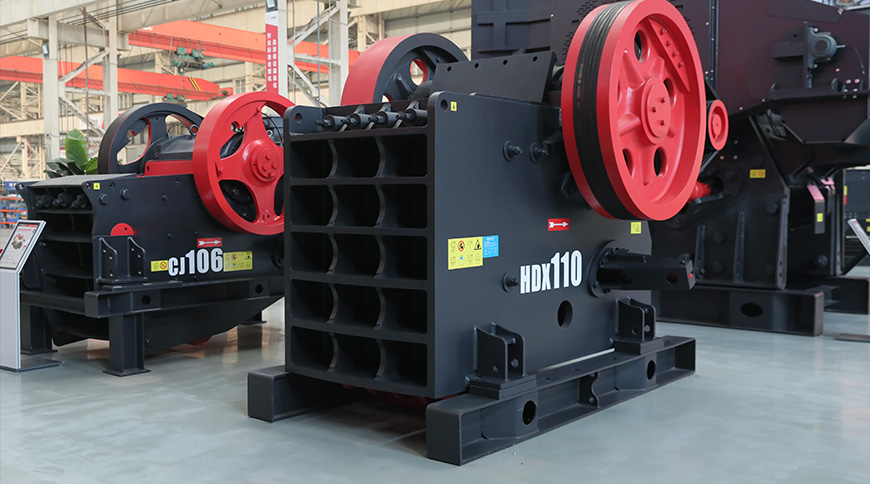

HDX Series German Type Jaw Crusher

Capacity:50-750 t/h
Feeding Size:≤900 mm

Raw Materials Processing --- Granite, marble, pebbles, dolomite, limestone, pebble, gold ore, basalt, quartz stone and other materials.

Are you interested in our machines?

Brief Introduction

The HDX german type jaw crusher is an upgraded product based on the HD German type jaw crusher based on the combination of many customer sites and market needs. It saves space, easy to operate, and reduces the cost of infrastructure construction, installation, operation and maintenance.

aggregate
basalt
boulder
granite
gravel
limestone

Working Principle

The motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw increases, thereby pushing the movable jaw plate closer to the fixed jaw plate. At the same time, the material is crushed or split to achieve the purpose of crushing; when the movable jaw descends, the angle between the toggle plate and the movable jaw decreases, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed material is discharged from the lower opening of the crushing chamber. As the motor rotates continuously, the movable jaw of the crusher moves periodically to crush and discharge materials, realizing mass production.

Chat Online

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Integral motor frame The integral motor frame makes the installation easier;reduces the installation space;The crusher moves synchronously with the integral motor main shaft, which improves the load on the V-belt.
Steel toggle plate The steel toggle plate is light in weight, easy to replace, and bends when exceeded, avoiding damage to the conveyor belt when the traditional cast iron toggle plate breaks and falls.
Wedge adjustment There are two adjustment methods: mechanical and hydraulic.The discharge opening can be adjusted within a few minutes,which greatly reduces labor intensity and downtime; this system is especially effective to clean the cavity.

Technical Data

Model	Feeding opening size(mm)	Maximum feeding size （mm）	Adjustment range of discharge port（mm）	Processing capacity(t/h)	Power(kw)	Dimensions L×W×H（mm）
HDX72(57)	720×460	425	45-100	50-120	6P 55	2450×2160×1615
HDX86(69)	860×580	500	50-150	60-280	8P 75	3005×2392×1780
HDX98(751)	980×680	630	75-175	110-410	8P 110	3372×2530×2145
HDX110(912)	1100×850	750	100-200	170-550	6P 132	3592×2670×2515
HDX125	1250×950	900	125-225	280-750	8P 160	4214×2810×2887

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding opening size(mm)	Maximum feeding size （mm）	Processing capacity(t/h)
HDX72(57)	720×460	425	50-120
HDX86(69)	860×580	500	60-280
HDX98(751)	980×680	630	110-410
HDX110(912)	1100×850	750	170-550
HDX125	1250×950	900	280-750

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
