CJ Series European Type Jaw Crusher

Capacity:120–1590 t/h
Feeding Size:480-1200 mm

Raw Materials Processing --- For hard materials such as granite, basalt, limestone, quartz, concrete, aggregate, iron ore, gold ore, etc.

Are you interested in our machines?

Brief Introduction

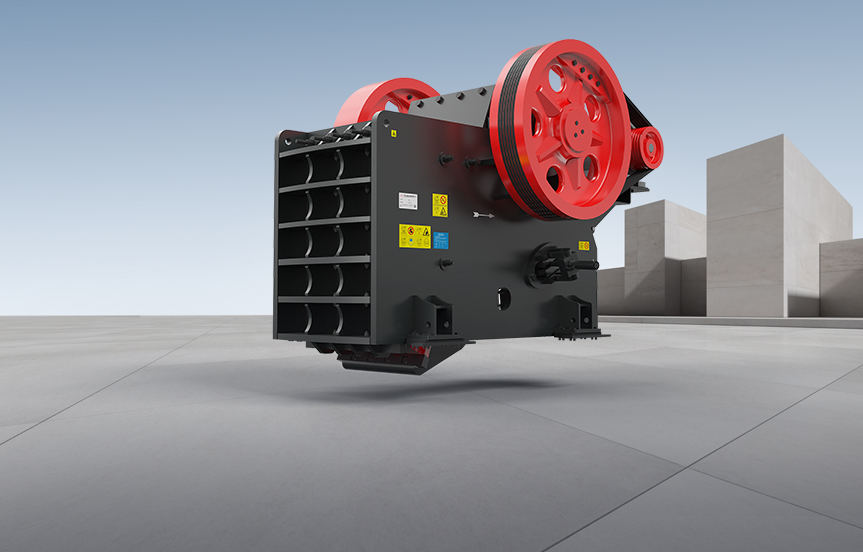

The CJ Series Jaw Crusher is a jaw crusher with excellent performance introduced by Henan Fote Heavy Machinery Co., Ltd. based on the needs of customers. Different from the traditional jaw crusher, its frame is non-welded but detachable, which is convenient for transportation and installation.

aggregate
basalt
boulder
granite
gravel
limestone

Working Principle

The CJ Series Jaw Crusher has less occupied space, larger crushing ratio and more stable operation. It has more advantages in transportation, installation, maintenance and adjustment. It is particularly suitable for fixed crushing lines and mobile crushing plants. The CJ Series Jaw Crusher has a maximum production capacity of 1160 t/h. Compared with the previous jaw crusher of the same specification, the bearing size is enlarged and the service lifespan is prolonged. The 4 bearings of the movable jaw and the frame are the same, which reduces the types of spare parts.

Chat Online

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Excellent feeding ability The deep V cavity allows the material into the crushing cavity without any obstruction, thus ensuring the best feeding ability.
Reliable equipment operation Greater fatigue resistance, higher reliability, and longer service life provide a good operating environment for the equipment.
High yield and big crushing ratio Large crushing ratio and stable operation, which fully guarantees the high yield and high efficiency of the crushing operation.

Technical Data

Model	Maximum Feeding size（mm）	Feeding opening size L×W（mm）	Adjustment range of discharge port（mm）	Capacity（t/h）	Power（KW）	Dimensions L×W×H（mm）
CJ96	480	930×580	60-175	105-390	4P 90	2850×2270×1950
CJ106	560	1060×700	70-200	150-500	4P 110	3280×2580×2400
CJ120	700	1200×870	70-200	175-610	4P 160	3700×2790×2950
CJ125	760	1250×950	100-250	270-831	4P 160	4230×2780×2960
CJ150	960	1400×1200	125-250	340-880	4P 200	5030×3440×3970
CJ160	960	1600×1200	150-300	430-1145	4P 250	5780×3460×3580
CJ200	1200	2000×1500	175-300	630-1435	6P 400	6600×4030×4400

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Maximum Feeding size（mm）	Capacity（t/h）
CJ96	480	105-390
CJ106	560	150-500
CJ120	700	175-610
CJ125	760	270-831
CJ150	960	340-880
CJ160	960	430-1145
CJ200	1200	630-1435

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Cases

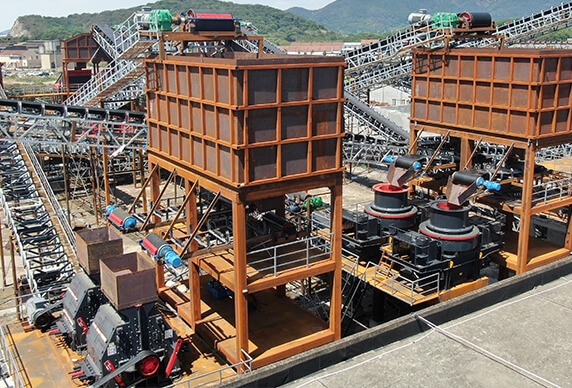

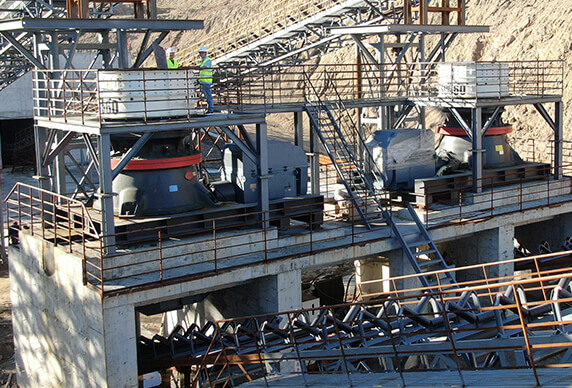

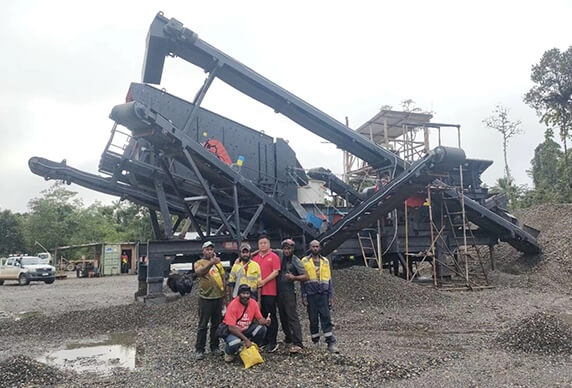

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.

Case1
Case2
Case3
