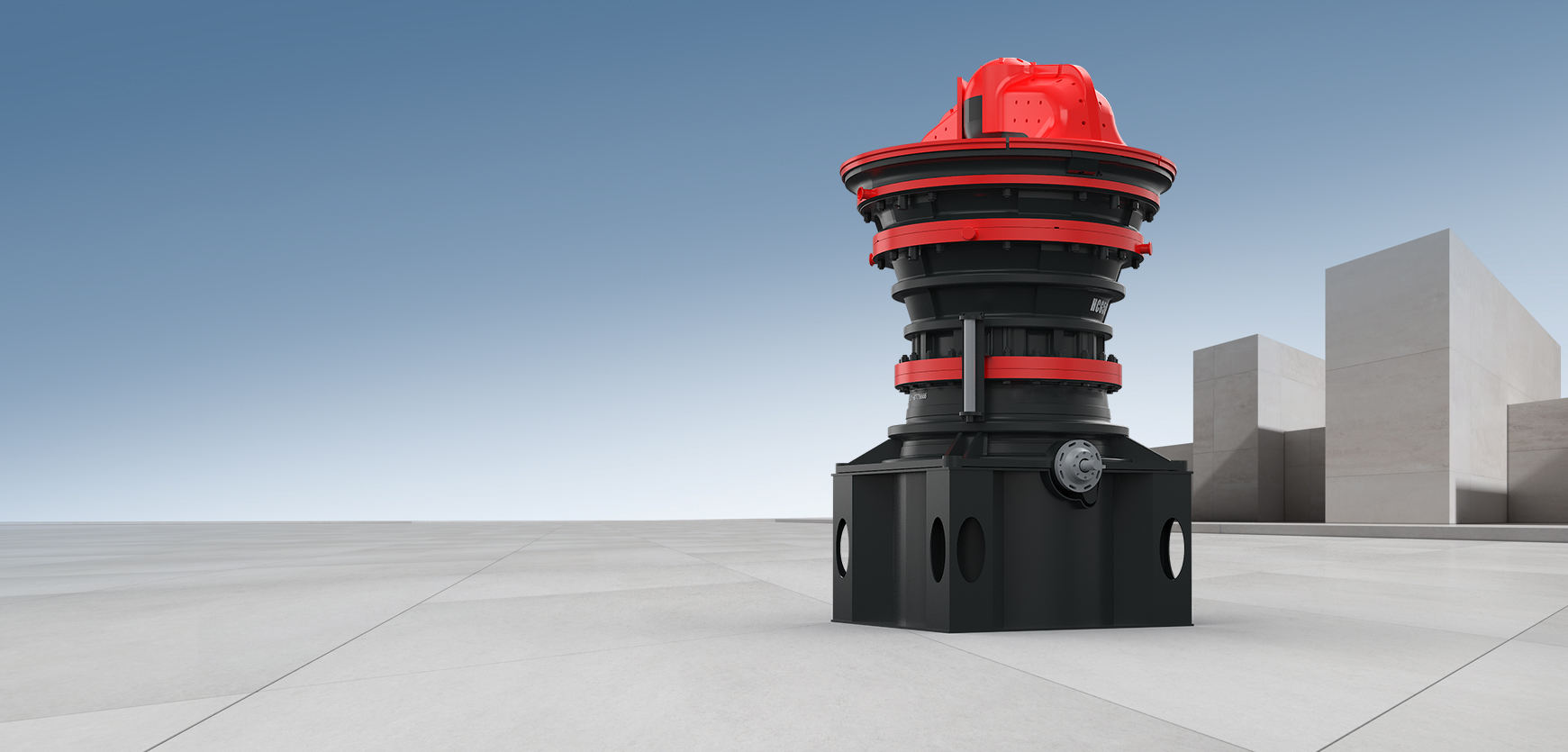

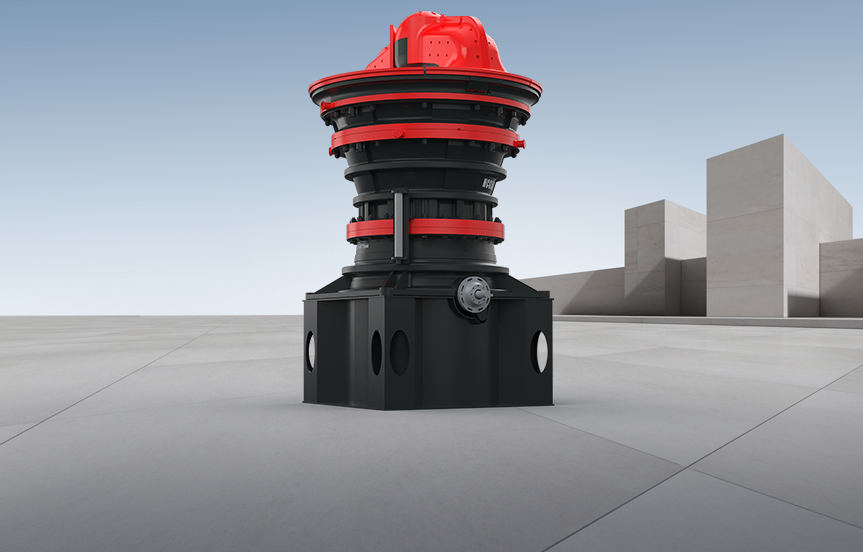

HCG Series Gyratory Crusher

Capacity:2000-10000 t/h
Feeding Size:900-1300 mm

Raw Materials Processing --- Granite, marble, pebbles, dolomite, limestone, pebble, gold ore, basalt, quartz stone and other materials.

Are you interested in our machines?

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Large capacity and low cost crushing The key to the production capacity of the equipment lies in the cavity design of the equipment. The HCG gyratory crusher has a fine crushing cavity design to ensure stronger production capacity, larger feed particle size and longer liner life;
Intelligent control system The addition of the intelligent control system effectively reduces the frequency of equipment overload and ensures that the equipment can achieve greater throughput and lower failure rate;
Simpler operation and maintenance As a super-large equipment, HCG gyratory crusher is designed with special attention to the convenience of maintenance, and is equipped with automatic lubrication and hydraulic system.
Remote Monitoring and Diagnosis System Through the Internet of Things technology, the operating status of the crusher can be obtained in real time, such as the load situation, the usage of the liner, and the frequency of failures.

Technical Data

Model	Feeding opening size (mm)	Maximum Feeding size (mm)	Adjustment range of discharge port (mm)	Capacity (t/h)	Power (kw)	Dimensions L×W×H(mm)
HCG4265	1065	900	140-175	2018-2878	400	3940×4170×6900
HCG5065	1270	1050	150-175	2403-2943	400	4460×4430×7610
HCG5475	1370	1150	150-200	2893-3493	450	4930×4925×8410
HCG6275	1575	1350	150-200	2898-4338	450	5580×5250×9090
HCG6089	1525	1300	165-230	4203-5813	630	5590×5445×10470
HCG60110	1525	1300	175-250	5543-8898	1250	6200×5940×11390

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding opening size (mm)	Maximum Feeding size (mm)	Capacity (t/h)
HCG4265	1065	900	2018-2878
HCG5065	1270	1050	2403-2943
HCG5475	1370	1150	2893-3493
HCG6275	1575	1350	2898-4338
HCG6089	1525	1300	4203-5813
HCG60110	1525	1300	5543-8898

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Cases

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
