Raw Materials Processing --- Limestone, iron ore, pebbles, non-ferrous metal ores, granite, basalt, limestone, quartzite and sandstone, etc.
Are you interested in our machines?

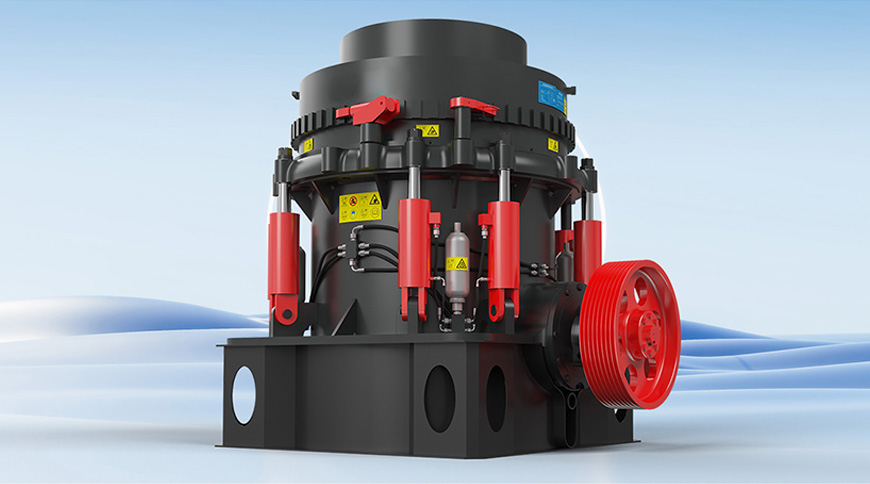

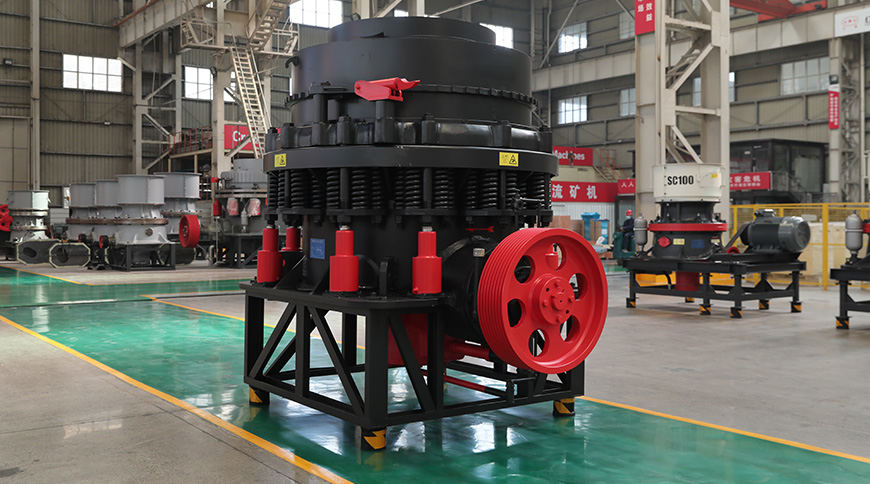

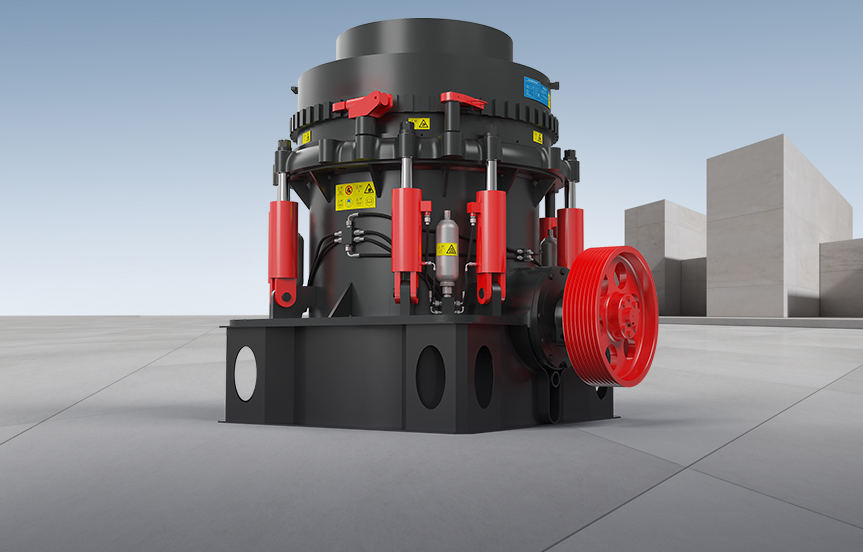

GYS cone crusher is based on our company's combination of PSG cone crusher. It adopts advanced automatic control design concepts and inherits the characteristics of reliable structure and low failure rate of traditional PSG series cone crushers, which can reduce downtime and reduce workers. Labor intensity.
aggregate
basalt
boulder
granite
gravel
limestone
During operation, the rotation of the motor drives the pulley or coupling, the transmission shaft and the cone part to make the eccentric shaft perform periodic pendulum motion below the axis line. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact, extrusion, grinding and kneading of the eccentric shaft and the mortar wall. The hydraulic safety system can remove the faulty objects from the support sleeve and the fixed cone part through hydraulic pressure when the machine has an iron fault or a jamming phenomenon, which greatly reduces the maintenance rate and improves production efficiency while playing a good insurance role.
Chat OnlineFocusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.
| Model | Cavities | Max.feeding Size（mm） | Processing capacity（t/h） |
| GYS 300 | C1 | 140 | 81-180 |
| C2 | 80 | 60-180 | |
| F1 | 60 | 36-145 | |
| F2 | 30 | 36-130 | |
| GYS 400 | C1 | 190 | 207-400 |
| C2 | 168 | 162-350 | |
| C3 | 110 | 126-310 | |
| F1 | 85 | 109-230 | |
| F2 | 70 | 82-230 | |
| F3 | 50 | 40-230 | |
| GYS 500 | C1 | 215 | 280-650 |
| C2 | 190 | 258-450 | |
| C3 | 170 | 180-410 | |
| F1 | 105 | 162-355 | |
| F2 | 70 | 136-330 | |
| F3 | 55 | 90-300 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
