Raw Materials Processing --- Limestone, iron ore, pebbles, non-ferrous metal ores, granite, basalt, limestone, quartzite and sandstone, etc.
Are you interested in our machines?

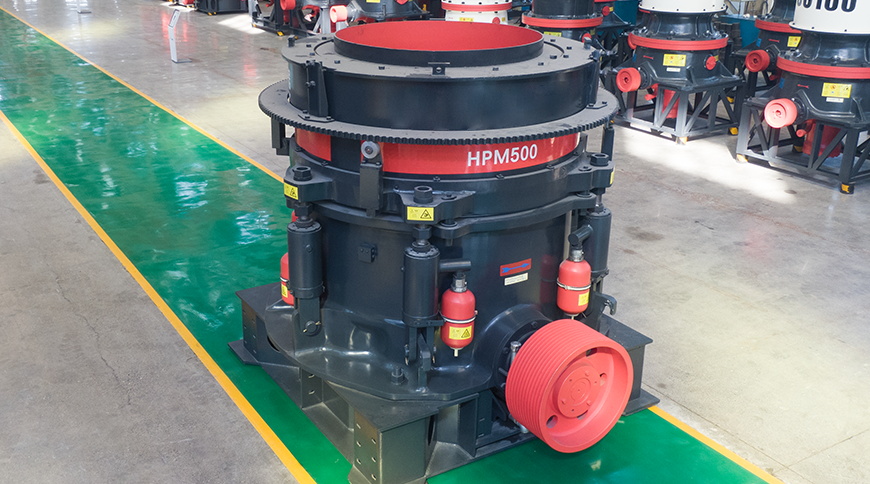

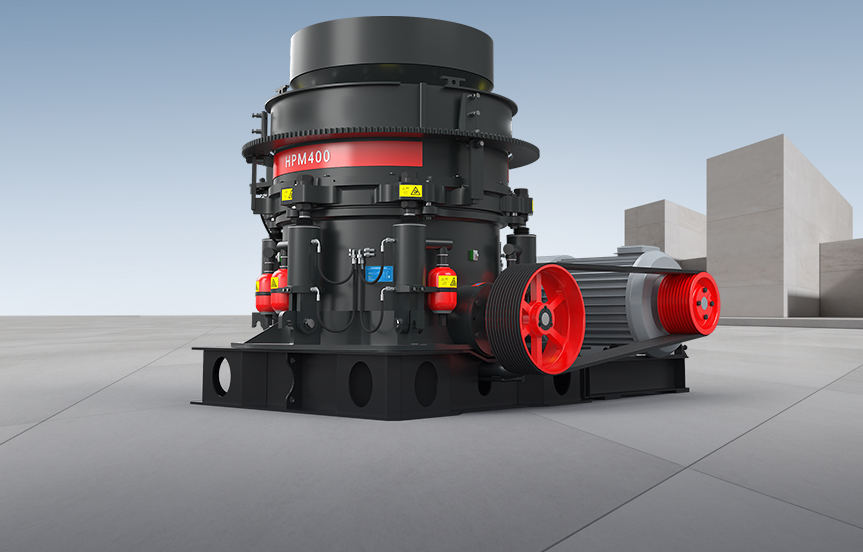

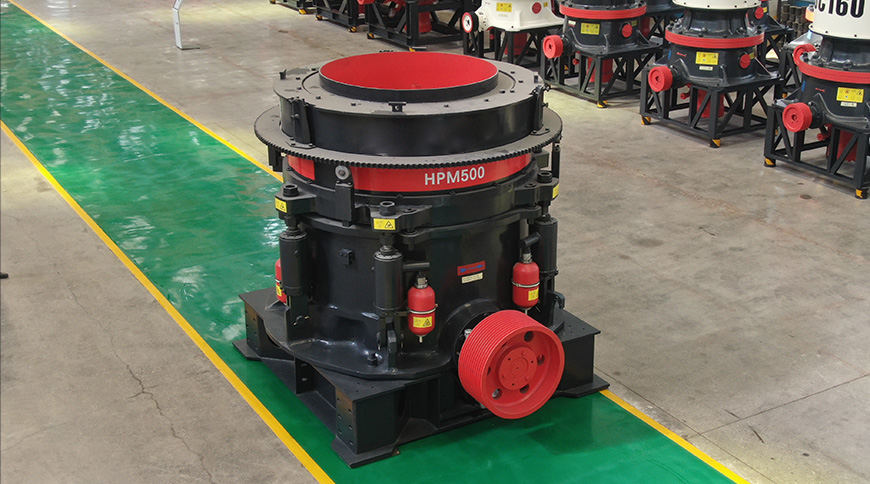

HPM series multi-cylinder cone crusher is a new type of cone crusher which is suitable for crushing high hard materials and has strict requirements on the grain shape of products. This series is complete, matching the new generation of intelligent control system and Internet control system.
aggregate
basalt
boulder
granite
gravel
limestone
During operation, the rotation of the motor drives the pulley or coupling, the transmission shaft and the cone part to make the eccentric shaft perform periodic pendulum motion below the axis line. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact, extrusion, grinding and kneading of the eccentric shaft and the mortar wall. The hydraulic safety system can remove the faulty objects from the support sleeve and the fixed cone part through hydraulic pressure when the machine has an iron fault or a jamming phenomenon, which greatly reduces the maintenance rate and improves production efficiency while playing a good insurance role.
Chat OnlineFocusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.
| Model | Cavities | Maximum Feeding size（mm） | Capacity（t/h） |
| HPM200 | C1 | 145 | 160~250 |
| C2 | 100 | 145~250 | |
| C3 | 75 | 120~250 | |
| F1 | 60 | 108~210 | |
| F2 | 45 | 81~210 | |
| HPM300 | C1 | 190 | 230~445 |
| C2 | 170 | 200~445 | |
| C3 | 120 | 180~445 | |
| C4 | 85 | 160~220 | |
| F1 | 40 | 140~220 | |
| HPM400 | C1 | 240 | 270~630 |
| C2 | 200 | 252~630 | |
| C3 | 160 | 243~630 | |
| C4 | 90 | 210~630 | |
| F1 | 75 | 162~370 | |
| F2 | 40 | 126~370 | |
| HPM500 | C1 | 270 | 365~790 |
| C2 | 230 | 328~790 | |
| C3 | 165 | 280~790 | |
| F1 | 105 | 202~450 | |
| F2 | 75 | 175~450 | |
| F3 | 42 | 158~450 | |
| HPM650 | C1 | 262 | 386~790 |
| C2 | 225 | 348~790 | |
| C3 | 175 | 300~790 | |
| F1 | 85 | 280~530 | |
| F2 | 42 | 220~530 | |
| HPM800 | C1 | 280 | 616~1100 |
| C2 | 240 | 522~1100 | |
| C3 | 214 | 495~1100 | |
| C4 | 175 | 380~1100 | |
| F1 | 125 | 328~730 | |
| F2 | 75 | 270~730 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
