Applied material --- sawdust, wood chips, wood flour, wood shavings, etc.
Are you interested in our machines?
Wood Chip Dryer is the key economical drying equipment for drying and dewarting wood chips. Wood chip dryer is for wood shavings, wood chips, wood sawdust and other materials.
The moisture inside the wood chips mainly are free water and biological water. Free water is easier to be dewatered, and biological water is difficult to be got rid of. Thus the reasonable inner structurer of the wood chip dryer is necessary so that the wood chip dryer can have better work performance and capacity.

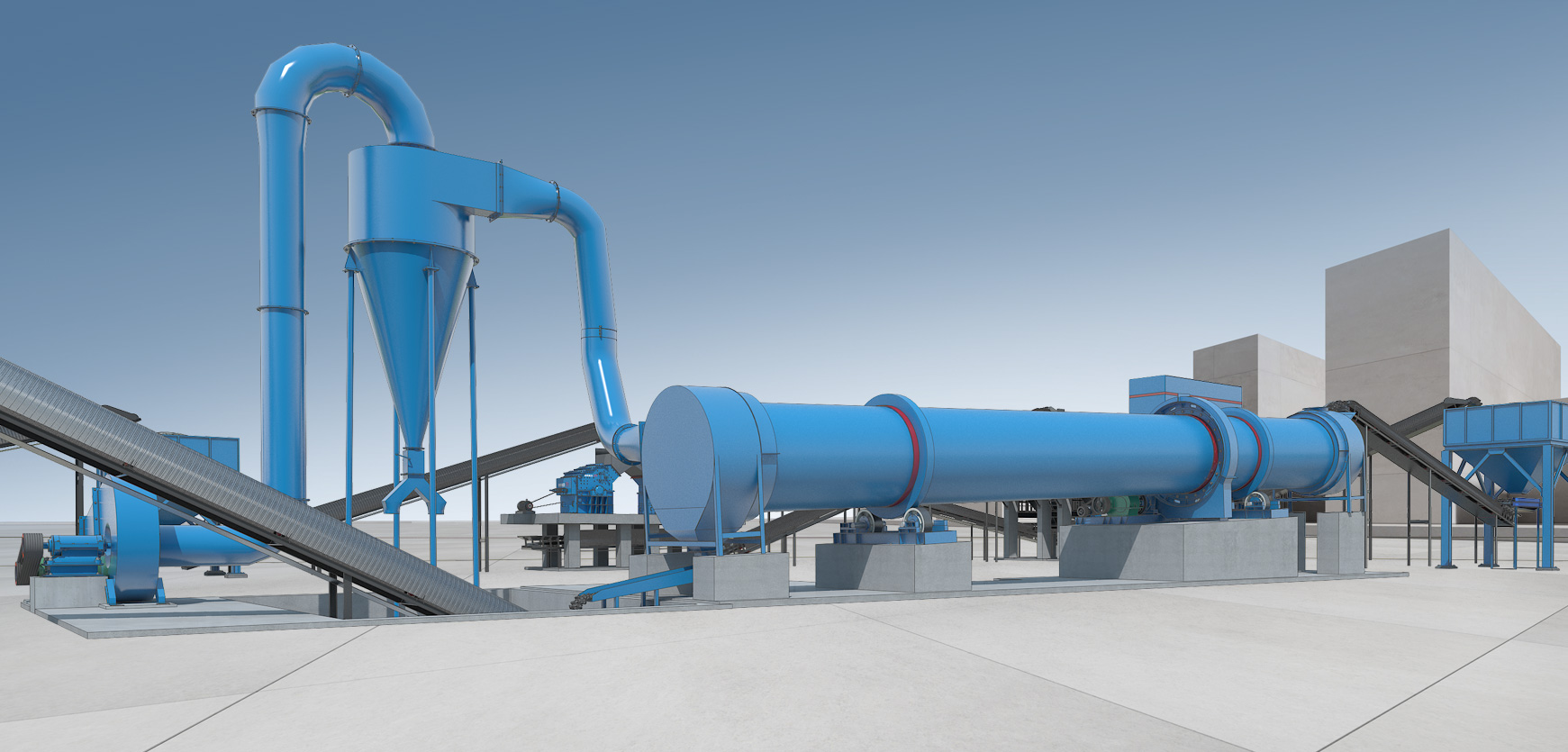

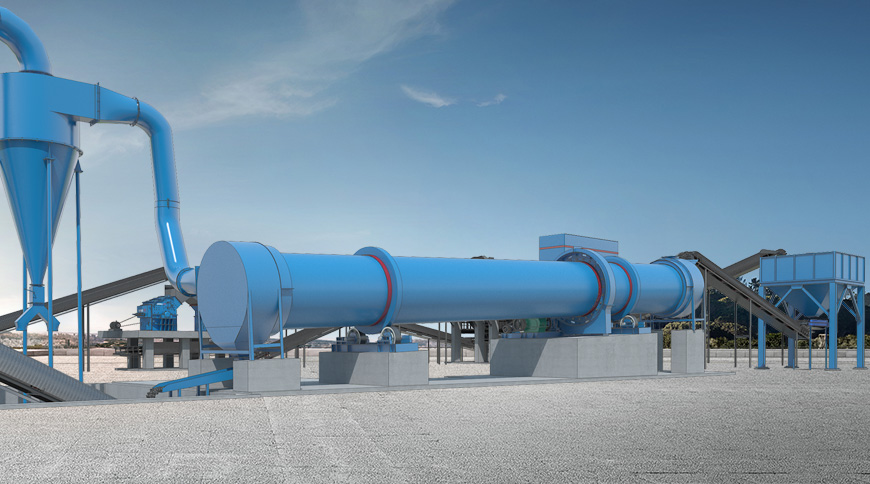

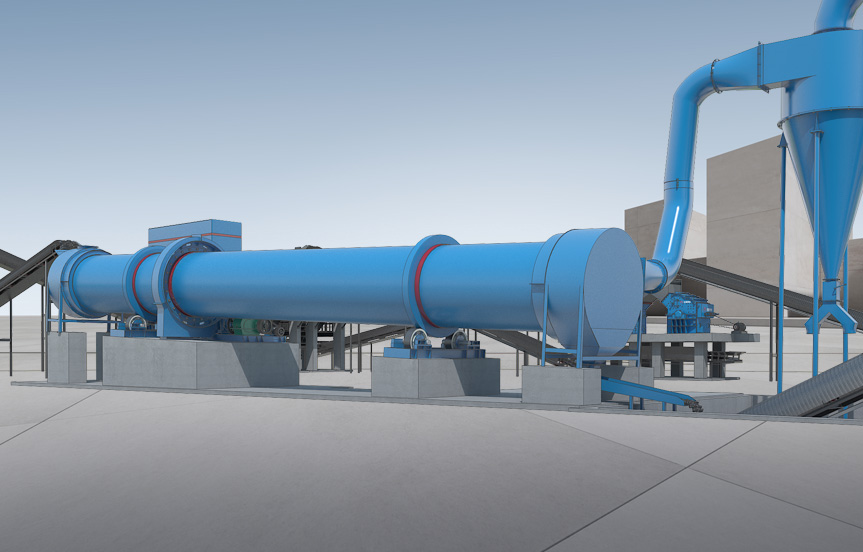

The wood is sent to the hopper by a belt conveyor or bucket elevator, and then enters the feeding end through the feeding pipe through the feeding machine of the hopper. The material is added from the higher end, and the heating medium enters from the lower end, and is in countercurrent contact with the material. When the wet material moves forward in the cylinder, it directly or indirectly receives heat from the heating medium, so that the wet material can be dried, and then sent out through a belt or screw conveyor at the discharge end. In addition, dust collectors can also be used to reduce dust in the drying system.
Chat OnlineFocusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.
Indirect heat transfer dryer

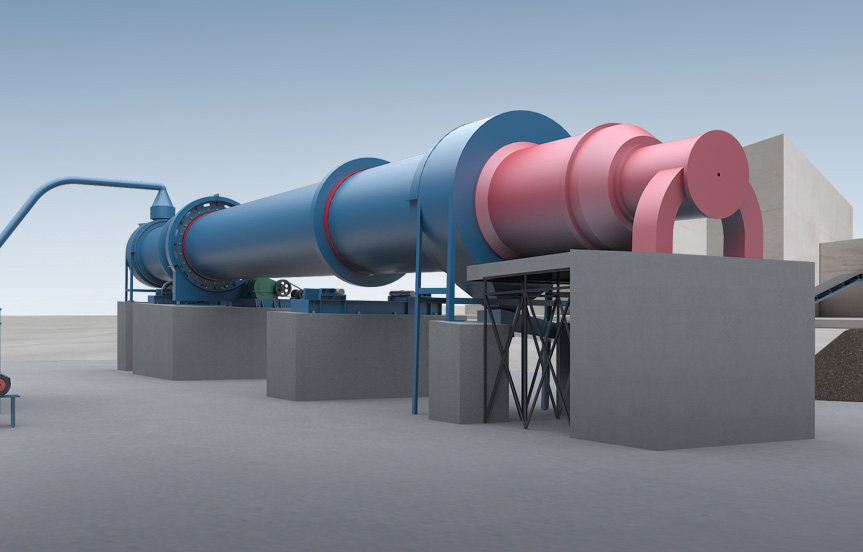

Rotary dryer
| Shell diameter × shell Length | Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell cubage (m³) |
| Φ1.5×15m | 1500 | 500 | 20.27 |
| Φ1.5×17m | 22.97 | ||
| Φ1.5×19m | 25.68 | ||
| Φ1.8×21m | 1800 | 650 | 35.91 |
| Φ1.8×23m | 39.33 | ||
| Φ1.8×25m | 42.75 | ||
| Φ2.2×21m | 2200 | 800 | 58.10 |
| Φ2.2×23m | 63.61 | ||
| Φ2.2×25m | 69.15 |
| Spec./m | Capacity(t/h) | Highest Inlet Air Temperature(℃) |
| Ø 1.2×8 | 1.9-2.4 | 700-800 |
| Ø1.2 ×10 | 2.4-3 | 700-800 |
| Ø 1.5×12 | 4.5-5.7 | 700-800 |
| Ø 1.5×14 | 5.3-6.6 | 700-800 |
| Ø1.5×15 | 5.7-7.1 | 700-800 |
| Ø 1.8×12 | 6.5-8.1 | 700-800 |
| Ø 1.8×14 | 7.6-9.5 | 700-800 |
| Ø 2.2×12 | 9.7-12.2 | 700-800 |
| Ø 2.2×14 | 11.4-14.2 | 700-800 |
| Ø 2.2×16 | 13-16.2 | 700-800 |
| Ø 2.4×14 | 13.5-16.9 | 700-800 |
| Ø 2.4×18 | 17.4-21.7 | 700-800 |
| Ø 2.4×20 | 19.3-24.1 | 700-800 |
| Ø 2.4×22 | 21.2-26.5 | 700-800 |
| Ø 2.6×24 | 27.2-34 | 700-800 |
| Ø 3×20 | 30.1-37.7 | 700-800 |
| Ø 3×25 | 37.7-47.1 | 700-800 |
| Ø 3.2×25 | 42.9-53.6 | 700-800 |
| Ø 3.6×28 | 60.8-76 | 700-800 |
