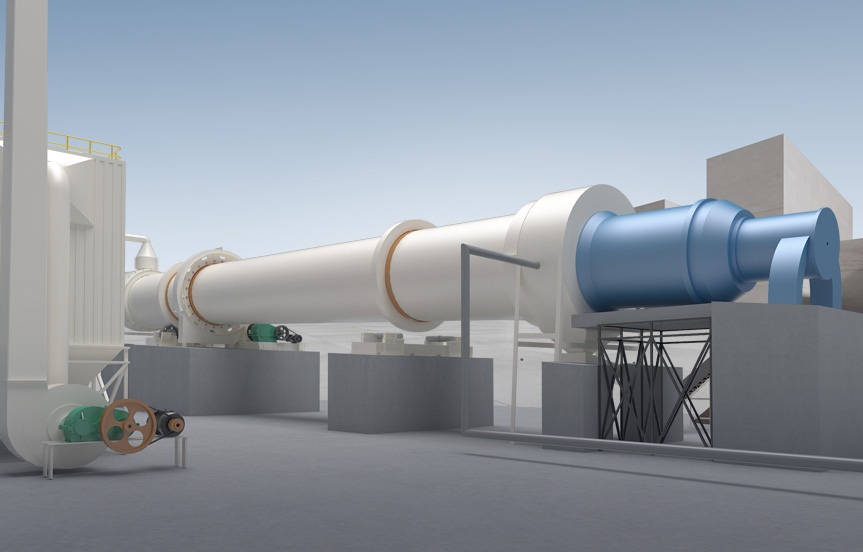

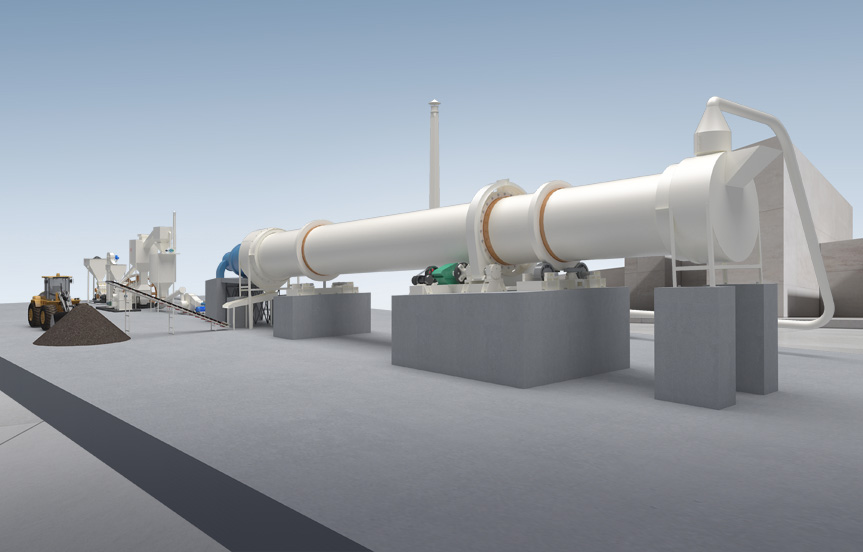

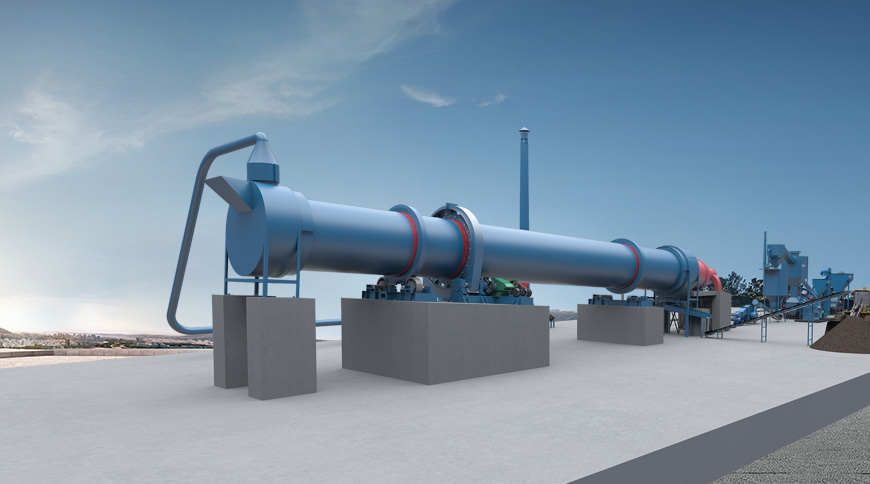

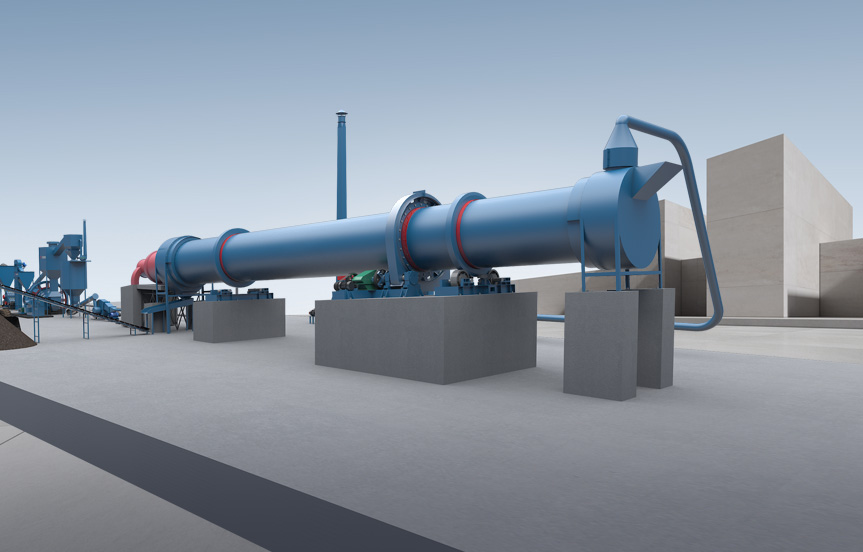

Sawdust Dryer

Sawdust Dryer

  • Processing capacity：1.9-76t/h
  • Cylinder capacity：9-285m³

Sawdust Dryer

Applied material ---sawdust, wood chips, wood flour, wood shavings, etc.

Are you interested in our machines?

Contact Us

Brief Introduction

The sawdust dryer uses a screw conveyor to continuously add the wet sawdust into the drying tube. In the transportation and dispersion of the high-speed hot gas flow, the water in the wet material is evaporated to obtain a powdery or granular dry product. The dryer equipment has strong adaptability to materials and can dry various materials, and the equipment operation is simple and reliable. According to different processing materials, it can be divided into coal dryer, sand dryer, slag dryer, gypsum dryer, lignite dryer, sawdust dryer, etc. Users can choose the machine according to their own needs.

Sawdust Dryer
FTM

Working Principle

The sawdust is sent to the hopper by a belt conveyor or bucket elevator, and then enters the feeding end through the feeding pipe through the feeding machine of the hopper. The material is added from the higher end, and the heating medium enters from the lower end, and is in countercurrent contact with the material. When the wet material moves forward in the cylinder, it directly or indirectly receives heat from the heating medium, so that the wet material can be dried, and then sent out through a belt or screw conveyor at the discharge end. In addition, dust collectors can also be used to reduce dust in the drying system.

Chat Online

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Technical Data

Indirect heat transfer dryer

Rotary dryer

Shell diameter × shell Length Inside diameter of outer shell
（mm）		 Inside diameter of inner shell
（mm）		 Shell Length
（m）		 Shell cubage
（m³）		 Shell obliquity Lifting blade form Highest inlet air temperature
（℃）		 Dimensions
（m）
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
Shell diameter × shell Length Inside diameter of outer shell
(mm)		 Inside diameter of inner shell
(mm)		 Shell cubage
(m³)
Φ1.5×15m 1500 500 20.27
Φ1.5×17m 22.97
Φ1.5×19m 25.68
Φ1.8×21m 1800 650 35.91
Φ1.8×23m 39.33
Φ1.8×25m 42.75
Φ2.2×21m 2200 800 58.10
Φ2.2×23m 63.61
Φ2.2×25m 69.15
Spec./m Shell Cubage Capacity(t/h) Installation(%) Highest Inlet Air
Temperature(℃)		 Main Motor
Ø1.2×8 9 1.9-2.4 3-5 700-800 7.5
Ø1.2 ×10 11.3 2.4-3 3-5 700-800 7.5
Ø 1.5×12 21.2 4.5-5.7 3-5 700-800 15
Ø 1.5×14 24.7 5.3-6.6 3-5 700-800 15
Ø1.5×15 26.5 5.7-7.1 3-5 700-800 15
Ø 1.8×12 30.5 6.5-8.1 3-5 700-800 18.5
Ø 1.8×14 35.6 7.6-9.5 3-5 700-800 18.5
Ø 2.2×12 45.6 9.7-12.2 3-5 700-800 22
Ø 2.2×14 53.2 11.4-14.2 3-5 700-800 22
Ø 2.2×16 60.8 13-16.2 3-5 700-800 22
Ø 2.4×14 63.3 13.5-16.9 3-5 700-800 37
Ø 2.4×18 81.4 17.4-21.7 3-5 700-800  37
Ø 2.4×20 90.4 19.3-24.1 3-5 700-800 45
Ø 2.4×22 99.5 21.2-26.5 3-5 700-800 45
Ø 2.6×24 127.4 27.2-34 3-5 700-800 55
Ø 3×20 141.3 30.1-37.7 3-5 700-800 75
Ø 3×25 176.6 37.7-47.1 3-5 700-800 75
Ø 3.2×25 201 42.9-53.6 3-5 700-800 90
Ø 3.6×28 285 60.8-76 3-5 700-800 160
Spec./m Capacity(t/h) Highest Inlet
Air Temperature(℃)
Ø 1.2×8 1.9-2.4 700-800
Ø1.2 ×10 2.4-3 700-800
Ø 1.5×12 4.5-5.7 700-800
Ø 1.5×14 5.3-6.6 700-800
Ø1.5×15 5.7-7.1 700-800
Ø 1.8×12 6.5-8.1 700-800
Ø 1.8×14 7.6-9.5 700-800
Ø 2.2×12 9.7-12.2 700-800
Ø 2.2×14 11.4-14.2 700-800
Ø 2.2×16 13-16.2 700-800
Ø 2.4×14 13.5-16.9 700-800
Ø 2.4×18 17.4-21.7  700-800
Ø 2.4×20 19.3-24.1 700-800
Ø 2.4×22 21.2-26.5 700-800
Ø 2.6×24 27.2-34 700-800
Ø 3×20 30.1-37.7 700-800
Ø 3×25 37.7-47.1 700-800
Ø 3.2×25 42.9-53.6 700-800
Ø 3.6×28 60.8-76 700-800

Cases

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
