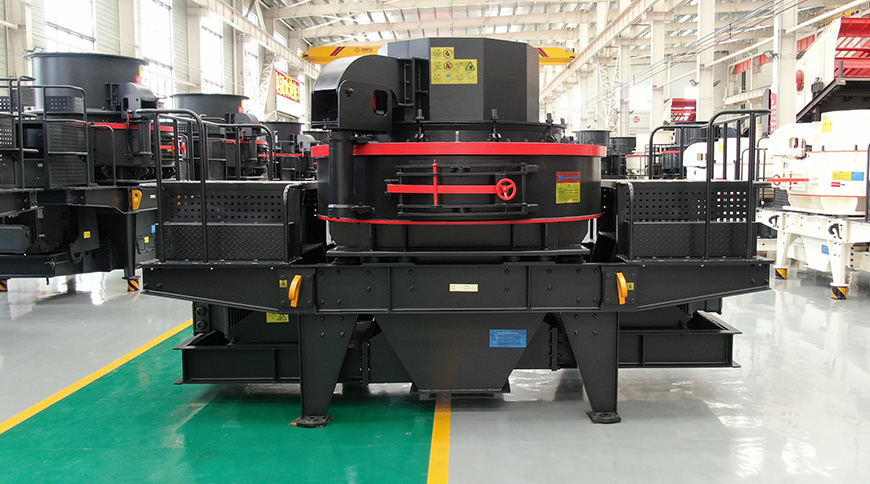

HVI Series Sand Making Machine

Capacity:70–585 t/h
Rotate Speed:200–530 r/min

Raw Materials Processing --- Metal and non-metal ore, building materials, artificial sand and various metallurgical slag crushing and shaping. All kinds of high-hardness ores (such as granite, talc, potassium feldspar, quartz stone, etc.) and construction waste, hollow bricks, etc.

Are you interested in our machines?

Brief Introduction

The HVI series sand maker is a new generation of products that our company introduces German technology, absorbs the domestic and foreign similar products' advanced technology development, and has many spontaneous R & D characteristics at the same time, which integrates all kinds of crushing modes,become the core equipment of mechanism sand industry. Can be widely used in metal and non-metallic ore, building materials, artificial sand and various metallurgical slag crushing and shaping.

Sand
Silica Sand
River Sand
Sea Sand
Quartzite Sand
Sand Ore

Working Principle

The impeller structure adopts a unique deep cavity four-port design to increase material throughput by more than 30% and special bulk tray design to convert quickly feeding and waterfall feeding, effectively reducing downtime, adjustment time, and improving work efficiency. The final products have cube form and the shaping effect is good, the iron pollution is extremely small, and the size of the grain can be adjusted according to actual needs.

Chat Online

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Deep cavity impeller -improves crushing efficiency and increases its throughout.
Lubrication -thin oil -type and grease -type modular design can achieve overall interchange.
Reasonable selection of crushing principle -impact crushing, excellent granules.
Core wear resistance — high wear resistance impact material.

Technical Data

Model	Hard material	Soft material	Sand Shaping	Sand Making	Motor Power（kw）
Model	Max.Feeding Size （mm）		Throughput（t/h）		Motor Power（kw）
HVI 0815	<30	<35	50-140	90-230	2×75
HVI 0818	<30	<35	60-190	110-283	2×90
HVI 0922	<35	<40	70-210	150-330	2×110
HVI 0926	<35	<40	85-240	170-380	2×132
HVI 1032	<40	<45	130-278	180-400	2×160
HVI 1040	<40	<45	180-284	250-440	2×200
HVI 1263	<50	<55	320-498	370-585	2×315

Model	Sand Shaping	Sand Making	Motor Power （kw）
Model	Max.Feeding Size （mm）		Motor Power （kw）
HVI 0815	50-140	90-230	2×75
HVI 0818	60-190	110-283	2×90
HVI 0922	70-210	150-330	2×110
HVI 0926	85-240	170-380	2×132
HVI 1032	130-278	180-400	2×160
HVI 1040	180-284	250-440	2×200
HVI 1263	320-498	370-585	2×315

Cases

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.

Case1
Case2
Case3
