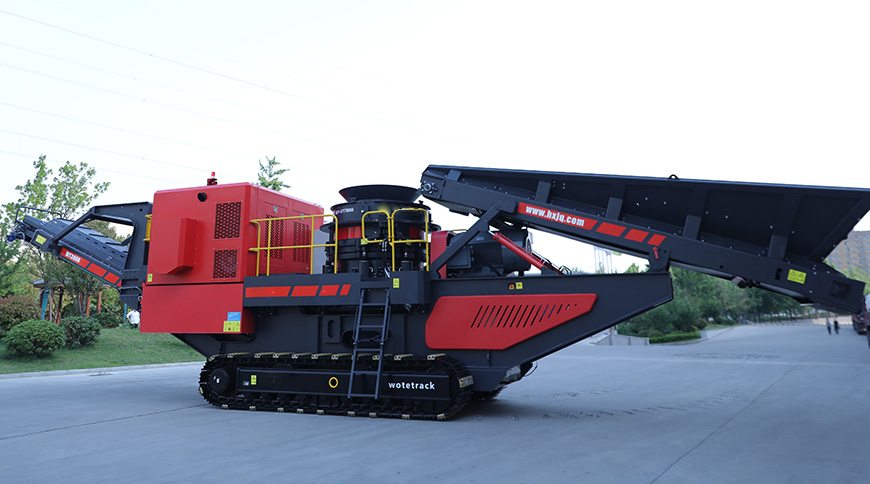

Mobile Cone Crusher

Mobile Cone Crusher

  • Capacity:50-445t/h
  • Feeding Size:175-241mm

Mobile Cone Crusher

Raw Materials Processing --- River pebble, limestone, granite, basalt, diabase, andesite, ore tailings, etc.

Are you interested in our machines?

Contact Us

Brief Introduction

The wheeled mobile cone crusher is composed of a high-efficiency cone crusher, a high-performance vibrating screen, a belt conveyor, a motor and a control box. It is mainly used for recycling of mines, coal mines, garbage and construction waste, earth and stone works, urban infrastructure, roads or construction sites. The mobile cone crusher is mainly used in the field of fine crushing. In the production of sand and gravel, it produces higher hardness and finer grain sand and gravel products according to different stones and the use of finished products.

FTM

Working Principle

The material is evenly conveyed into the cone crusher through the feeder, and after the material is initially crushed by cone crusher, the closed circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material. The finished products are output by the conveyor for continuous crushing. The wheeled mobile cone crusher can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of the material directly, and it can be used with other crushing equipments, and the operation is convenient and flexible.

Chat Online

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Technical Data

Model FTM3S185GYS300 FTM3S216GYS400 FTM3S216HP300
Transportation length(mm) 14500 15000 16000
Transportation Width(mm) 3000 3000 4550
Transportation Height(mm) 4400 4500 4600
Maximum Length(mm) 17000 16000 17000
Maximum Width(mm) 3400 3900 6900
Maximum Height(mm) 5800 6500 4700
Weight(t) 34.5 49.5 41
Tire Configuration Dualaxial Triaxial Triaxial
Cone crusher GYS300 GYS400 HP300
Discharging belt Conveyor B650×15M×2 B800×15M×2 B800×15M×2
Return belt conveyor B650×14M B800×14M B800×16M
CONveyor Belt For Final Products B500×15M B800×6M B650×15M×2
Under Virbrating Screen B800×7M B800×8M B800×9M
Vibrating Screen 3YK1854 3YK2160 3YK2160
Model FTM3S185GYS300 FTM3S216GYS400 FTM3S216HP300
Transportation length(mm) 14500 15000 16000
Transportation Width(mm) 3000 3000 4550
Transportation Height(mm) 4400 4500 4600
Maximum Length(mm) 17000 16000 17000
Maximum Width(mm) 3400 3900 6900
Maximum Height(mm) 5800 6500 4700
Weight(t) 34.5 49.5 41
Tire Configuration Dualaxial Triaxial Triaxial
Cone crusher GYS300 GYS400 HP300
Discharging belt Conveyor B650×15M×2 B800×15M×2 B800×15M×2
Return belt conveyor B650×14M B800×14M B800×16M
CONveyor Belt For Final Products B500×15M B800×6M B650×15M×2
Under Virbrating Screen B800×7M B800×8M B800×9M
Vibrating Screen 3YK1854 3YK2160 3YK2160

Cases

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
