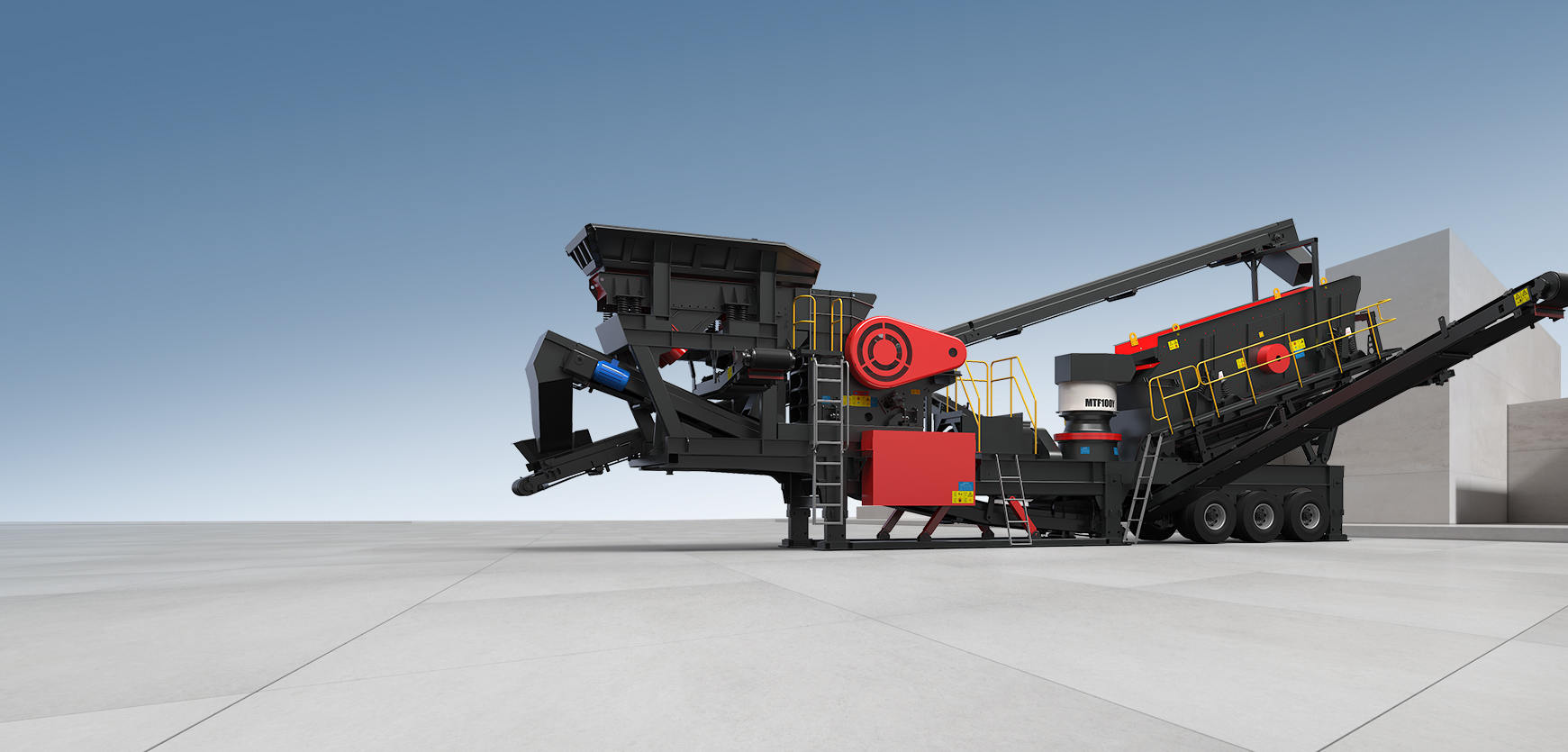

MTF Wheel Type Mobile Crushing And Screening Station

MTF Wheel Type Mobile Crushing And Screening Station

  • Capacity:50-300 t/h
  • Feeding Size:≤800 mm

MTF Wheel Type Mobile Crushing And Screening Station

Raw Materials Processing --- Construction waste treatment, concrete waste, soil slag, granite, basalt, cement clinker, quartz stone, corundum, ore sand, iron ore, bauxite, etc.

Are you interested in our machines?

Contact Us

Brief Introduction

The overall appearance of the mobile station is beautiful, the workmanship is exquisite, the host is equipped with the latest technology, the performance is stable and reliable, and the output is high. A large number of belt conveyors which are assembled on the trailer eliminate the need for on-site transfer and external belt conveyors, and the work site is tidy and organized; Each mobile station is equipped with a crawler plate device to ensure that the equipment arrives at the site quickly for installation and commissioning, and reduces the concrete foundation preparation time.

The MTF series of wheel-type mobile production lines fully cover the application fields of hard rock, soft rock, and construction waste with a processing capacity of 100-300 tons per hour.

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Technical Data

Series Standard Model On board Equipment On board Equipment Processing Capability(t/h) Transport Dimensions(mm)
FOUR COMBINATION MOBILE STATION MTF100Y-2 GZD850×3000/2YK1545 HD72/GYS300 50-100 15000×2650×4500
MTF100Y-3 GZDT0835/3HX1548 HDX86/SC100F1 50-100 17500×2500×4000
MTF150Y-3 GZDT0835/3HX1548 HDX86/SC160F1 70-150 17500×2500×4000
MTF150R-3 GZDT0835/3HX1548 HDX86/CI1110 60-150 17500×2500×4000
MOBILE COARSE CRUSHING STATION MTF96 GZDT9538 CJ96 70-200 13000×2950×4250
MTF98 GZDT9538 HDX98 80-200 13000×2950×4250
MTF106 GZDT1145A CJ106 90-300 14000×3000×4400
MTF110 GZDT1145A HDX110 120-300 14000×3000×4400
MTF1213C GZDT9538 Cl1213 80-200 13000×2950×4250
MTF1316C GZDT1145A Cl1316 100-300 14000×3000×4400
MOBILE MEDIUM AND FINE CRUSHING STATION MTF300 一 HPM300C1 100-200 15500×2900×4200
MTF400 一 HPM400C3 150-300 16500×3100×4300
MTF250 一 SC250F1 90-200 16500×3100×4300
MTF1213 一 Cl1213 80-200 16000×2900×4300
MTF1316 一 Cl1316 100-300 16500×3100×4500
MTF0926 一 HV10926 85-200 16500×3100×4300
MTF1040 一 HV11040 120-300 16500×3100×4400
MOBILE SCREENING STATION MTF1865-3 一 3HX1865 65-200 14500×2900×4000
MTF2165-3 一 3HX2165 85-300 15000×2900×4400
MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING MTF300S-3SⅡ 3HX1865 HPM300C1 100-200 15000×3000×4000
MTF300S-3 3HX2165 HPM300C1 100-200 15000×3000×4000
MTF400S-3 3HX2165 HPM400C3 150-300 15000×3000×4000
MTFG400S-3SⅡ 3HX1865 GYS400C1 100-200 15000×3000×4000
MTFG400S-3 3HX2165 GYS400C1 100-200 15000×3000×4000
MTF250S-3 3HX2165 SC250F1 90-200 15000×3000×4200
MTF1213S-3 3HX1865 Cl1213 80-200 15000×3000×4200
MTF1316S-3 3HX2165 Cl1316 100-300 15000×3000×4200
MTF0926S-2 2HX1865 HVI0926 85-200 18000×3000×4200
MTF1040S-2 2HX2165 HV11040 120-300 18000×3000×4200
THREE COMBINATION MOBILE STATION MTF1213-Ⅲ GZDT9538/3HX1865 Cl1213 80-200 18200×2800×4350
MTF1316-Ⅲ GZDT1145A/3HX2165 Cl1316 100-300 18200×3000×4200
MTF1410-Ⅲ GZDT9538/3HX1865 PCZ1410 80-200 18200×2800×4200
MTF1612-Ⅲ GZDT1145A/3HX2165 PCZ1612 100-300 18200×3000×4200

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Series Standard Model Processing Capacity
(t/h)
FOUR COMBINATION MOBILE STATION MTF100Y-2 50-100
MTF100Y-3 50-100
MTF150Y-3 70-150
MTF150R-3 60-150
MOBILE COARSE CRUSHING STATION MTF96 70-200
MTF98 80-200
MTF106 90-300
MTF110 120-300
MTF1213C 80-200
MTF1316C 100-300
MOBILE MEDIUM AND FINE CRUSHING STATION MTF300 100-200
MTF400 150-300
MTF250 90-200
MTF1213 80-200
MTF1316 100-300
MTF0926 85-200
MTF1040 120-300
MOBILE SCREENING STATION MTF1865-3 65-200
MTF2165-3 85-300
MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING MTF300S-3SⅡ 100-200
MTF300S-3 100-200
MTF400S-3 150-300
MTFG400S-3SⅡ 100-200
MTFG400S-3 100-200
MTF250S-3 90-200
MTF1213S-3 80-200
MTF1316S-3 100-300
MTF0926S-2 85-200
MTF1040S-2 120-300
THREE COMBINATION MOBILE STATION MTF1213-Ⅲ 80-200
MTF1316-Ⅲ 100-300
MTF1410-Ⅲ 80-200
MTF1612-Ⅲ 100-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Cases

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
