Mobile Jaw Crusher

Mobile Jaw Crusher

  • Capacity:50-500t/h
  • Feeding Size:480-850mm

Mobile Jaw Crusher

Raw materials processing --- River pebble, limestone, granite, basalt, diabase, andesite, ore tailings.

Are you interested in our machines?

Contact Us

Brief Introduction

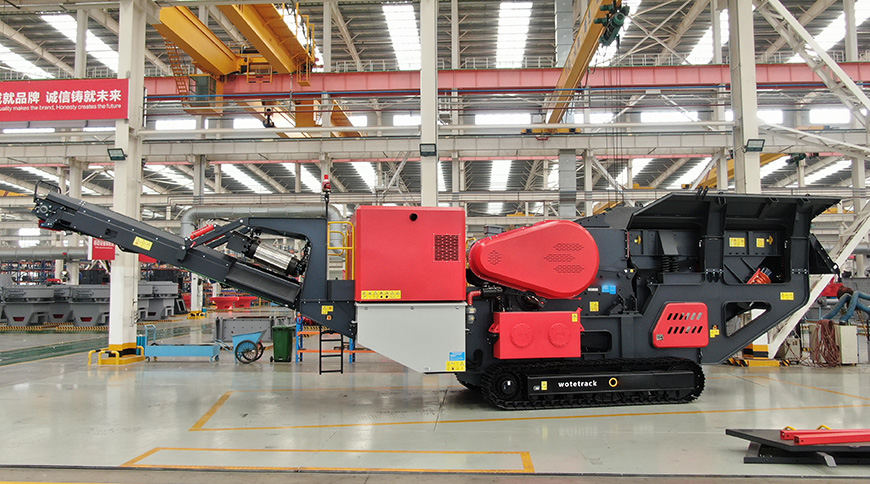

The mobile jaw crusher is mainly composed of a feeder, a jaw crusher, a belt conveyor and a vibrating screen. It adopts an integrated group operation mode, which can be operated separately, eliminating the complex site infrastructure and auxiliary facilities installation of the split components, reducing the labor consumption. The wheeled mobile jaw crushing station is suitable for mine, coal mine, garbage and construction waste recycling, earth and stone works, urban infrastructure, roads or construction sites.

FTM

Working Principle

The material is evenly conveyed into the crusher through the feeder, and after the primary crushing by the jaw crusher, the closed circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material, and the finished products are output by the conveyor for continuous crushing operation. The wheeled mobile jaw crushing station can remove the circular vibrating screen according to the actual production needs, realize the primary crushing of the material directly, and cooperate with other crushing equipment, and the operation is convenient and flexible.

Chat Online

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Technical Data

Model FTM938HD86 FTM1149HD98 FTM1349HD110 FTM1349HD125
Transportation lenght(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Lenght(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dualaxial Triaxial Triaxial Triaxial
Jaw Crusher HD86 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge opening range 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Feeder ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5m B1000×9.5m B1000×11m B1200×11m
Side-opening Belt conveyor(optional) B500×3m B650×3.5m B650×4m B650×4m
Gensrt(optional) 200KW 250KW 270KW 400KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12

Model FTM938HD86 and FTM1149HD98

Model FTM938HD86 FTM1149HD98
Transportation lenght(mm) 12600 13500
Transportation Width(mm) 2600 2700
Transportation Height(mm) 3870 4200
Maximum Lenght(mm) 12500 14000
Maximum Width(mm) 4100 4500
Maximum Height(mm) 4100 4900
Weight(t) 39 57
tIRE Configuration Dualaxial Dualaxial
Jaw Crusher HD86 HD98
Maximum Feeding Size(mm) 500 550
Discharge opening range 50-150 75-175
Capacity(t/h) 85-275 110-350
Vibrating Feeder ZSW380×95 ZSW420×110
Main Belt Conveyor B800×8.5m B1000×9.5m
Side-opening Belt conveyor(optional) B500×3m B650×3.5m
Gensrt(optional) 200KW 250KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-10

Model FTM1349HD110 and FTM1349HD125

Model FTM1349HD110 FTM1349HD125
Transportation lenght(mm) 14500 15200
Transportation Width(mm) 2800 2900
Transportation Height(mm) 4450 4500
Maximum Lenght(mm) 16100 16700
Maximum Width(mm) 5100 5100
Maximum Height(mm) 5000 5300
Weight(t) 55 65
Tire Configuration Dualaxial Dualaxial
Jaw Crusher HD110 HD125
Maximum Feeding Size(mm) 660 800
Discharge opening range 100-200 125-225
Capacity(t/h) 215-510 280-650
Vibrating Feeder ZSW490×130 ZSW490×130
Main Belt Conveyor B1000×11m B1200×11m
Side-opening Belt conveyor(optional) B650×4m B650×4m
Gensrt(optional) 270KW 400KW
Iron separator(optional) RCYD(C)-10 RCYD(C)-12

Cases

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
