Applied material ---ore slag, coal cinder, furnace slag, furnace clinker, iron slag, stone, clay, sand and other similar materials.
Are you interested in our machines?
Slag processing and utilization requires a slag dryer (direct heat transfer drum dryer and indirect heat transfer drum dryer). Slag is also a major industrial waste produced in steel making operations. It can be made into cement, glass, and brick. It can also be used to make agricultural fertilizer or extract useful materials.

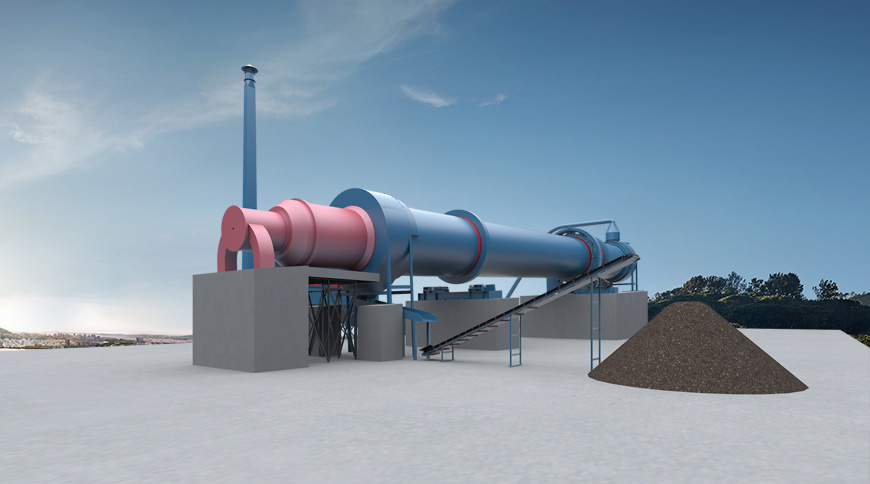

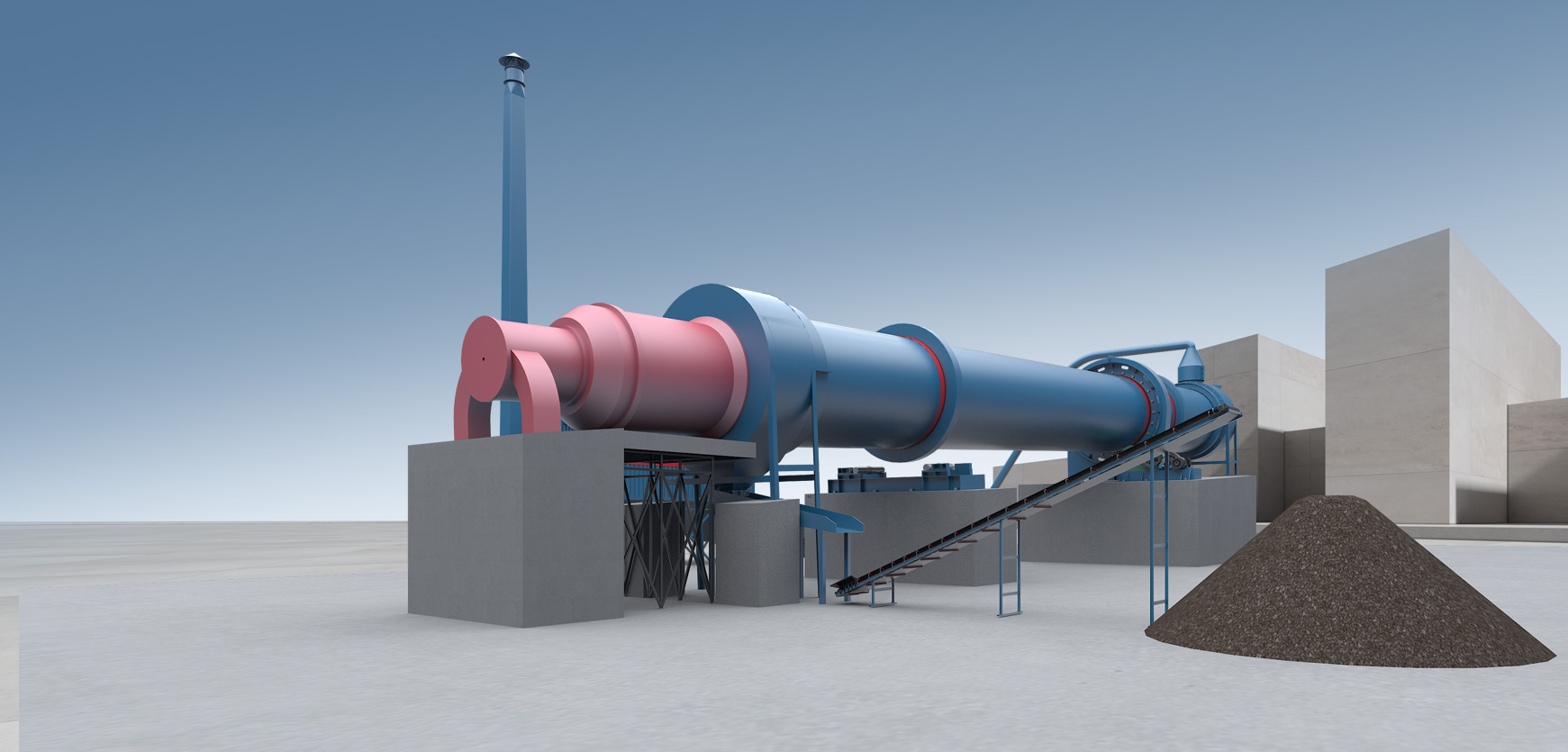

The slag is sent to the hopper by a belt conveyor or bucket elevator, and then enters the feeding end through the feeding pipe through the feeding machine of the hopper. The material is added from the higher end, and the heating medium enters from the lower end, and is in countercurrent contact with the material. When the wet material moves forward in the cylinder, it directly or indirectly receives heat from the heating medium, so that the wet material can be dried, and then sent out through a belt or screw conveyor at the discharge end. In addition, dust collectors can also be used to reduce dust in the drying system.
Chat OnlineFocusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.
Indirect heat transfer dryer
Rotary dryer
| Shell diameter × shell Length | Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell cubage (m³) |
| Φ1.5×15m | 1500 | 500 | 20.27 |
| Φ1.5×17m | 22.97 | ||
| Φ1.5×19m | 25.68 | ||
| Φ1.8×21m | 1800 | 650 | 35.91 |
| Φ1.8×23m | 39.33 | ||
| Φ1.8×25m | 42.75 | ||
| Φ2.2×21m | 2200 | 800 | 58.10 |
| Φ2.2×23m | 63.61 | ||
| Φ2.2×25m | 69.15 |
| Spec./m | Capacity(t/h) | Highest Inlet Air Temperature(℃) |
| Ø 1.2×8 | 1.9-2.4 | 700-800 |
| Ø1.2 ×10 | 2.4-3 | 700-800 |
| Ø 1.5×12 | 4.5-5.7 | 700-800 |
| Ø 1.5×14 | 5.3-6.6 | 700-800 |
| Ø1.5×15 | 5.7-7.1 | 700-800 |
| Ø 1.8×12 | 6.5-8.1 | 700-800 |
| Ø 1.8×14 | 7.6-9.5 | 700-800 |
| Ø 2.2×12 | 9.7-12.2 | 700-800 |
| Ø 2.2×14 | 11.4-14.2 | 700-800 |
| Ø 2.2×16 | 13-16.2 | 700-800 |
| Ø 2.4×14 | 13.5-16.9 | 700-800 |
| Ø 2.4×18 | 17.4-21.7 | 700-800 |
| Ø 2.4×20 | 19.3-24.1 | 700-800 |
| Ø 2.4×22 | 21.2-26.5 | 700-800 |
| Ø 2.6×24 | 27.2-34 | 700-800 |
| Ø 3×20 | 30.1-37.7 | 700-800 |
| Ø 3×25 | 37.7-47.1 | 700-800 |
| Ø 3.2×25 | 42.9-53.6 | 700-800 |
| Ø 3.6×28 | 60.8-76 | 700-800 |
