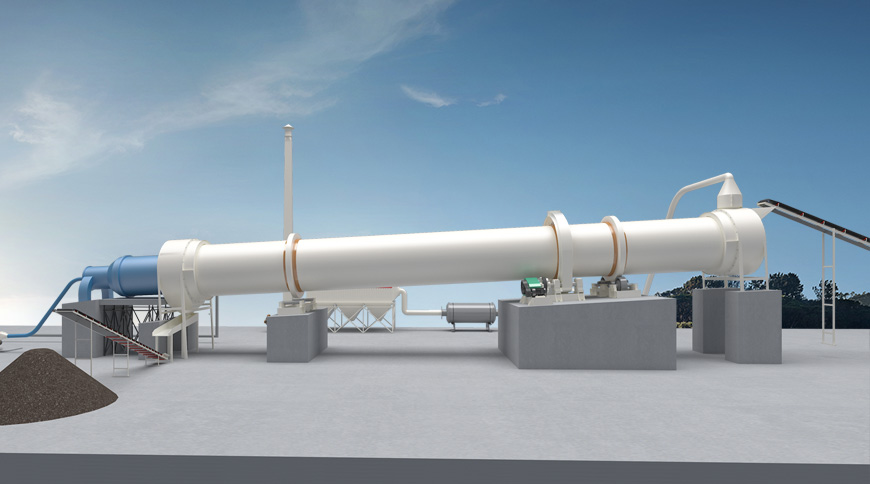

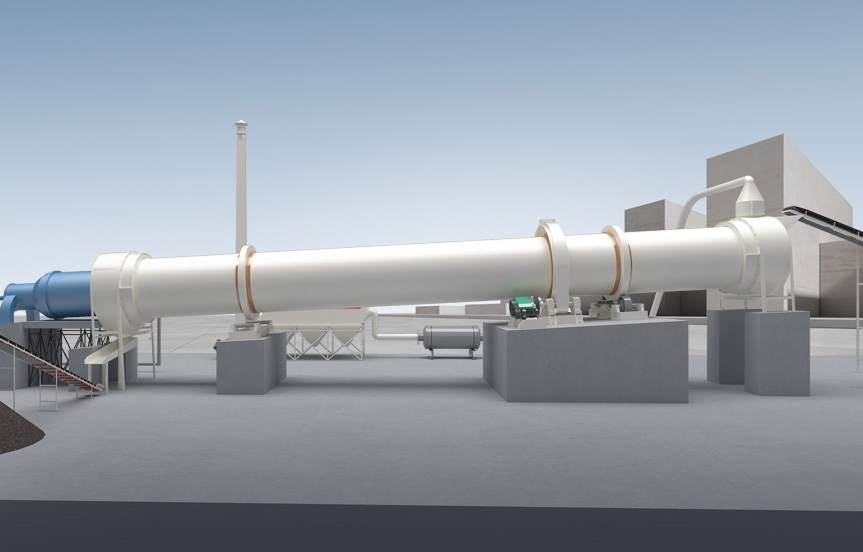

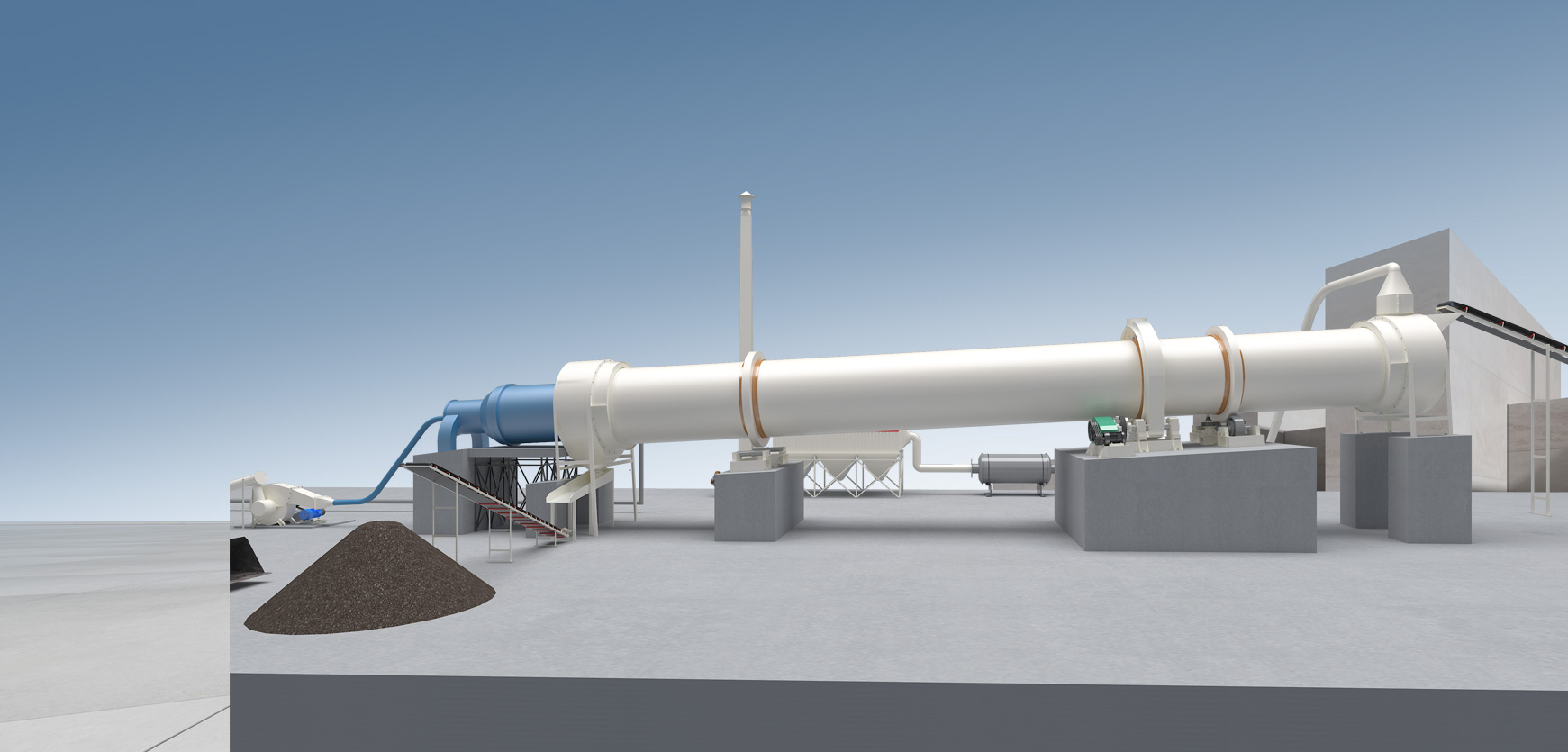

Limestone Dryer

Limestone Dryer

  • Processing capacity：1.9-76t/h
  • Cylinder capacity：9-285m³

Limestone Dryer

Applied material ---mineral stone, slag, tailings, mineral powder, minerals, silica sand, fluorite powder, feldspar, iron ore, etc

Are you interested in our machines?

Contact Us

Brief Introduction

Limestone dryers are widely used in building materials, metallurgy, mineral processing, chemical, cement and other industries.

Limestone is a sedimentary rock with many industrial uses and it has a relatively high humidity. Whether in the mining stage or in the processing stage, dry limestone has many benefits and plays a vital role in the production of high-quality limestone products. Before being used in the industrial field, it usually needs to be dried before it can be used in the appropriate industrial field.

Limestone Dryer
FTM

Working Principle

The limestone is transported to the hopper by the belt conveyor or elevator, and then the limestone is sent to the feeding end by the vibrating feeder uniformly. The limestone enters from the high end, and the heating medium and the limestone enter the cylinder in the same direction or in the reverse direction. The limestone is heated in the cylinder directly or indirectly, and becomes dry under the action of the heating medium. The dried limestone is sent out under the action of a belt conveyor or a screw conveyor.

Chat Online

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Technical Data

Indirect heat transfer dryer

Rotary dryer

Shell diameter × shell Length Inside diameter of outer shell
（mm）		 Inside diameter of inner shell
（mm）		 Shell Length
（m）		 Shell cubage
（m³）		 Shell obliquity Lifting blade form Highest inlet air temperature
（℃）		 Dimensions
（m）
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
Shell diameter × shell Length Inside diameter of outer shell
(mm)		 Inside diameter of inner shell
(mm)		 Shell cubage
(m³)
Φ1.5×15m 1500 500 20.27
Φ1.5×17m 22.97
Φ1.5×19m 25.68
Φ1.8×21m 1800 650 35.91
Φ1.8×23m 39.33
Φ1.8×25m 42.75
Φ2.2×21m 2200 800 58.10
Φ2.2×23m 63.61
Φ2.2×25m 69.15
Spec./m Shell Cubage Capacity(t/h) Installation(%) Highest Inlet Air
Temperature(℃)		 Main Motor
Ø1.2×8 9 1.9-2.4 3-5 700-800 7.5
Ø1.2 ×10 11.3 2.4-3 3-5 700-800 7.5
Ø 1.5×12 21.2 4.5-5.7 3-5 700-800 15
Ø 1.5×14 24.7 5.3-6.6 3-5 700-800 15
Ø1.5×15 26.5 5.7-7.1 3-5 700-800 15
Ø 1.8×12 30.5 6.5-8.1 3-5 700-800 18.5
Ø 1.8×14 35.6 7.6-9.5 3-5 700-800 18.5
Ø 2.2×12 45.6 9.7-12.2 3-5 700-800 22
Ø 2.2×14 53.2 11.4-14.2 3-5 700-800 22
Ø 2.2×16 60.8 13-16.2 3-5 700-800 22
Ø 2.4×14 63.3 13.5-16.9 3-5 700-800 37
Ø 2.4×18 81.4 17.4-21.7 3-5 700-800  37
Ø 2.4×20 90.4 19.3-24.1 3-5 700-800 45
Ø 2.4×22 99.5 21.2-26.5 3-5 700-800 45
Ø 2.6×24 127.4 27.2-34 3-5 700-800 55
Ø 3×20 141.3 30.1-37.7 3-5 700-800 75
Ø 3×25 176.6 37.7-47.1 3-5 700-800 75
Ø 3.2×25 201 42.9-53.6 3-5 700-800 90
Ø 3.6×28 285 60.8-76 3-5 700-800 160
Spec./m Capacity(t/h) Highest Inlet
Air Temperature(℃)
Ø 1.2×8 1.9-2.4 700-800
Ø1.2 ×10 2.4-3 700-800
Ø 1.5×12 4.5-5.7 700-800
Ø 1.5×14 5.3-6.6 700-800
Ø1.5×15 5.7-7.1 700-800
Ø 1.8×12 6.5-8.1 700-800
Ø 1.8×14 7.6-9.5 700-800
Ø 2.2×12 9.7-12.2 700-800
Ø 2.2×14 11.4-14.2 700-800
Ø 2.2×16 13-16.2 700-800
Ø 2.4×14 13.5-16.9 700-800
Ø 2.4×18 17.4-21.7  700-800
Ø 2.4×20 19.3-24.1 700-800
Ø 2.4×22 21.2-26.5 700-800
Ø 2.6×24 27.2-34 700-800
Ø 3×20 30.1-37.7 700-800
Ø 3×25 37.7-47.1 700-800
Ø 3.2×25 42.9-53.6 700-800
Ø 3.6×28 60.8-76 700-800

Cases

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
