Industrial dryer machine in mineral processing. The removal of water from solid materials by thermal drying plays a significant role in modern mineral processing. A great number of dryer types are available.
Applied material --- mineral stone, slag, tailings, mineral powder, minerals, silica sand, fluorite powder, feldspar, iron ore, etc
Are you interested in our machines?
Industrial dryer machine in mineral processing. The removal of water from solid materials by thermal drying plays a significant role in modern mineral processing. A great number of dryer types are available.

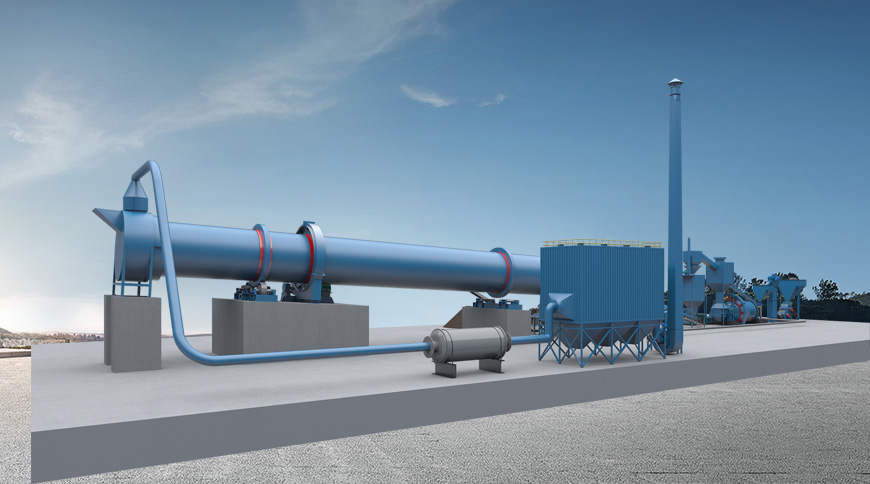

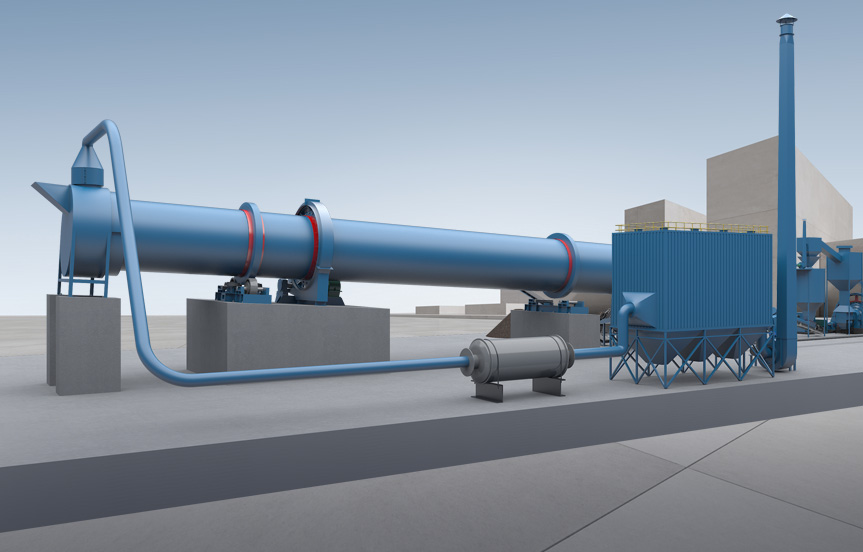

The ore is sent to the hopper by a belt conveyor or bucket elevator, and then enters the feeding end through the feeding pipe through the feeding machine of the hopper. The material is added from the higher end, and the heating medium enters from the lower end, and is in countercurrent contact with the material. When the wet material moves forward in the cylinder, it directly or indirectly receives heat from the heating medium, so that the wet material can be dried, and then sent out through a belt or screw conveyor at the discharge end. In addition, dust collectors can also be used to reduce dust in the drying system.
Chat OnlineFocusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.
Indirect heat transfer dryer
Rotary dryer
| Shell diameter × shell Length | Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell cubage (m³) |
| Φ1.5×15m | 1500 | 500 | 20.27 |
| Φ1.5×17m | 22.97 | ||
| Φ1.5×19m | 25.68 | ||
| Φ1.8×21m | 1800 | 650 | 35.91 |
| Φ1.8×23m | 39.33 | ||
| Φ1.8×25m | 42.75 | ||
| Φ2.2×21m | 2200 | 800 | 58.10 |
| Φ2.2×23m | 63.61 | ||
| Φ2.2×25m | 69.15 |
| Spec./m | Capacity(t/h) | Highest Inlet Air Temperature(℃) |
| Ø 1.2×8 | 1.9-2.4 | 700-800 |
| Ø1.2 ×10 | 2.4-3 | 700-800 |
| Ø 1.5×12 | 4.5-5.7 | 700-800 |
| Ø 1.5×14 | 5.3-6.6 | 700-800 |
| Ø1.5×15 | 5.7-7.1 | 700-800 |
| Ø 1.8×12 | 6.5-8.1 | 700-800 |
| Ø 1.8×14 | 7.6-9.5 | 700-800 |
| Ø 2.2×12 | 9.7-12.2 | 700-800 |
| Ø 2.2×14 | 11.4-14.2 | 700-800 |
| Ø 2.2×16 | 13-16.2 | 700-800 |
| Ø 2.4×14 | 13.5-16.9 | 700-800 |
| Ø 2.4×18 | 17.4-21.7 | 700-800 |
| Ø 2.4×20 | 19.3-24.1 | 700-800 |
| Ø 2.4×22 | 21.2-26.5 | 700-800 |
| Ø 2.6×24 | 27.2-34 | 700-800 |
| Ø 3×20 | 30.1-37.7 | 700-800 |
| Ø 3×25 | 37.7-47.1 | 700-800 |
| Ø 3.2×25 | 42.9-53.6 | 700-800 |
| Ø 3.6×28 | 60.8-76 | 700-800 |
Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
