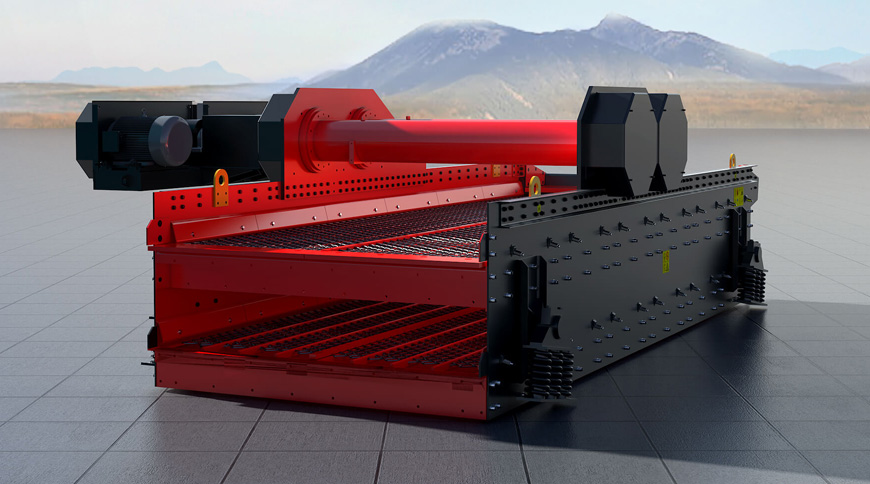

HX(D) Series Heavy Vibating Screen

Are you interested in our machines?

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

15°-- 23°screen surface inclination selection range, can better adapt to the specific site conditions.
The shaker is an eccentric shaft + eccentric block structure, providing sufficient excitation force for transmission stability.
Thin oil lubricated vibrator, replace lubricating oil once half a year, Daily maintenance is easy.
Key parts of the design of wear-resistant protective layer, quickly replace after wear, prolong the service life of the equipment.
Belt wheel drive, can quickly adjust the equipment speed according to the field conditions.
Using special bearings for vibration equipment, longer life, escort for your screen division sequence.

Technical Data

Model	Sieve Layer	Sieve obliquity (°)	Vibrating Frequency (r/min)	Max.Feeding Size (mm)	Processing Capacity (t/h)	Power (kw)	Mesh Size (mm)	Double Amplitude (mm)	Dimensions (LxWxH) (mm)
2HX3075D	2	15-20	600-1100	300	130-1300	22×2	1-140	5-13	8695×4080×2145
3HX3075D	3	15-20	600-1100	300	140-1300	37×2	1-140	5-13	8940×4095×2885
2HX3085D	2	15-20	600-1100	300	150-1300	37×2	1-140	5-13	9892×3909×2140
3HX3085D	3	15-20	600-1100	300	160-1300	45×2	1-140	5-13	10132×4100×2880
2HX3685D	2	15-20	600-1100	300	200-1500	37×2	1-140	5-13	9500×5420×2200
3HX3685D	3	15-20	600-1100	300	220-1500	45×2	1-140	5-13	9780×5505×3050

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sieve Layer	Sieve obliquity (°)	Processing Capacity (t/h)
2HX3075D	2	15-20	130-1300
3HX3075D	3	15-20	140-1300
2HX3085D	2	15-20	150-1300
3HX3085D	3	15-20	160-1300
2HX3685D	2	15-20	200-1500
3HX3685D	3	15-20	220-1500

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Cases

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.

Case1
Case2
Case3
