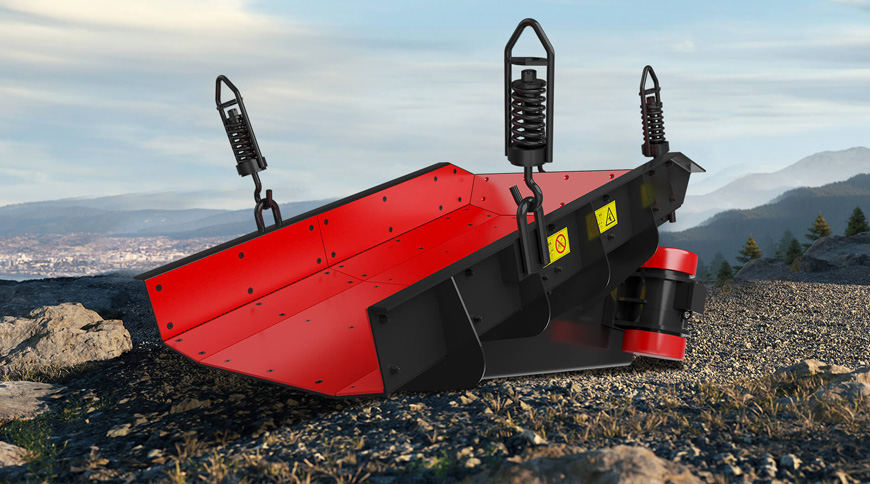

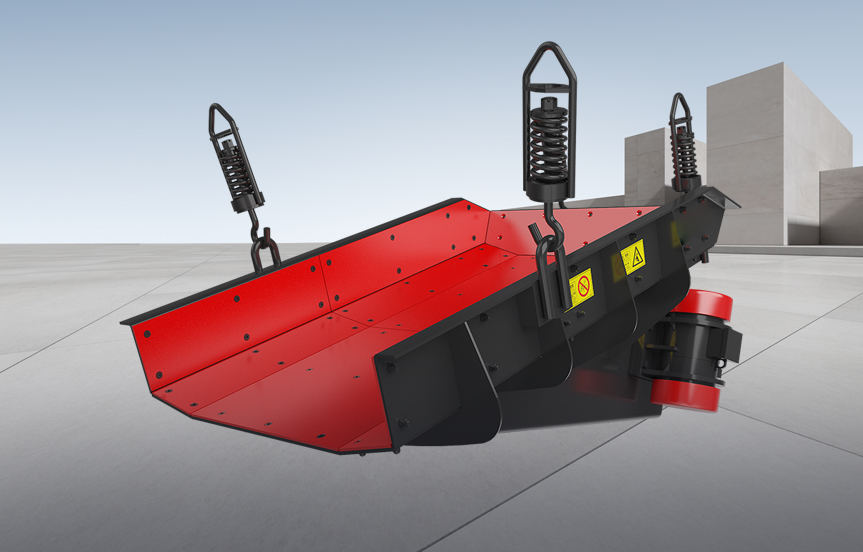

GZG Series Hopper Feeder

Are you interested in our machines?

Brief Introduction

GZG series hopper feeder, equipped with transit silo, can continuously and stably feed the fine crushing equipment, which is specially used to solve the problem of impact and damage to the fine crushing equipment caused by intermittent feeding on site, and greatly improve the service life and production efficiency of the fine crushing equipment.

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

All welded groove body, compact structure.
Double vibration motor drive, stable performance.
Suspension installation, easy to adjust the installation Angle.
The inner side of the tank is equipped with NM400 wear-resistant lining layer to prolong the service life.

Technical Data

Model	Feeding size（mm）	Double Amplitude（mm）	Feeding Capacity（t/h）		Motor Power（kw）
Model	Feeding size（mm）	Double Amplitude（mm）	0°	10°	Motor Power（kw）
GZG7012	200	2.5-3.5	120	170	2×0.55
GZG9015	250	2.5-3.5	180	250	2×0.75
GZG1117	300	2.5-3.5	300	420	2×1.1
GZG1320	350	2.5-3.5	480	670	2×1.5
GZG1625	500	2.5-3.5	770	1100	2×2.2

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding size（mm）	Feeding Capacity（t/h）		Motor Power（kw）
Model	Feeding size（mm）	0°	10°	Motor Power（kw）
GZG7012	200	120	170	2×0.55
GZG9015	250	180	250	2×0.75
GZG1117	300	300	420	2×1.1
GZG1320	350	480	670	2×1.5
GZG1625	500	770	1100	2×2.2

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Cases

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.

Case1
Case2
Case3
