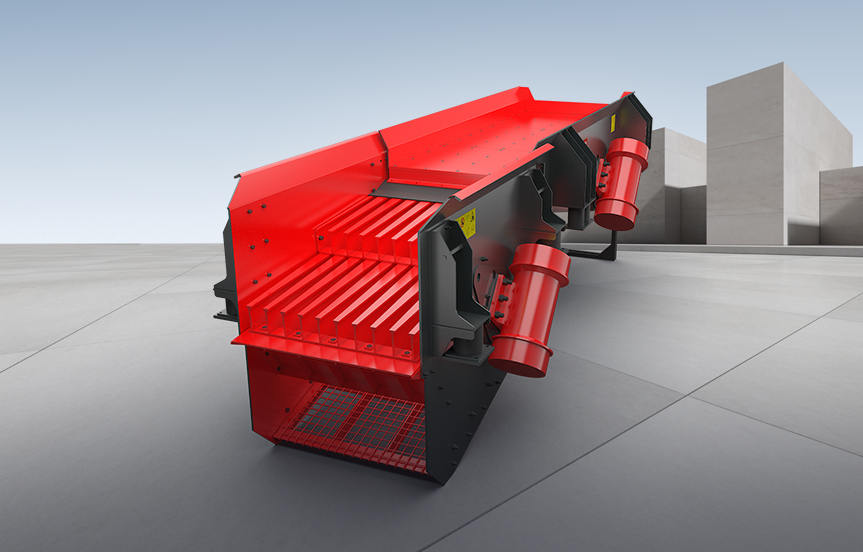

HMF Series Motor Vibrating Feeder

Are you interested in our machines?

Brief Introduction

HMF series motor vibrating feeder is the special products launched by our company, which is suitable for feeding stone, building materials and metallurgical mines to small and medium-sized primary crushing equipment. It is compact in structure, strong in impact resistance, and uses a vibration motor as the vibration source. It is easy to maintain during use, with low failure rate, and is greatly convenient for on-site adjustment and production maintenance.

Advantages

Focusing on crushing machinery for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Compact structure and beautiful appearance;
Vibration motor drive, stable performance, simple adjustment, long maintenance cycle;
Wear- resistant grate and finger like rod can be selected according to site materials to avoid blockage.
The lower part of the castor bar is equipped with a standard discharge port to directly collect the materials under the screen to the belt;
Screen mesh can be selected at the lower part of the castor bar to fine screen the waste materials and soil, so as to improve the utilization rate of raw materials.

Technical Data

Model	W×L (mm)	Length of the grate (mm)	Max.Feeding size (mm)	Max.Feeding capacity(t/h)	Power (kw)
HMF0832	800×3200	800×2	450	300	2×2.9
HMF0832S	800×3200	800×2	450	300	2×2.9
HMF1042	1000×4200	800×2	500	400	2×5.5
HMF1042S	1000×4200	800×2	500	400	2×5.5
HMF1148	1100×4800	800×2	700	500	2×7.5
HMF1148S	1100×4800	800×2	700	500	2×7.5

Note:1. The model suffix S means the additional screen. Example: HMF0832S, which is a type with a screen under the grate bar;2. The maximum feeding capacity is for dry materials with a bulk density of 1.6t/m³, for reference only.

Model	Max.Feeding size (mm)	Max.Feeding capacity (t/h)
HMF0832	450	300
HMF0832S	450	300
HMF1042	500	400
HMF1042S	500	400
HMF1148	700	500
HMF1148S	700	500

Cases

Our Crushing Equipment and Dryer Equipment has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. The following is how our crushing machines work at the customer site. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.

Case1
Case2
Case3
